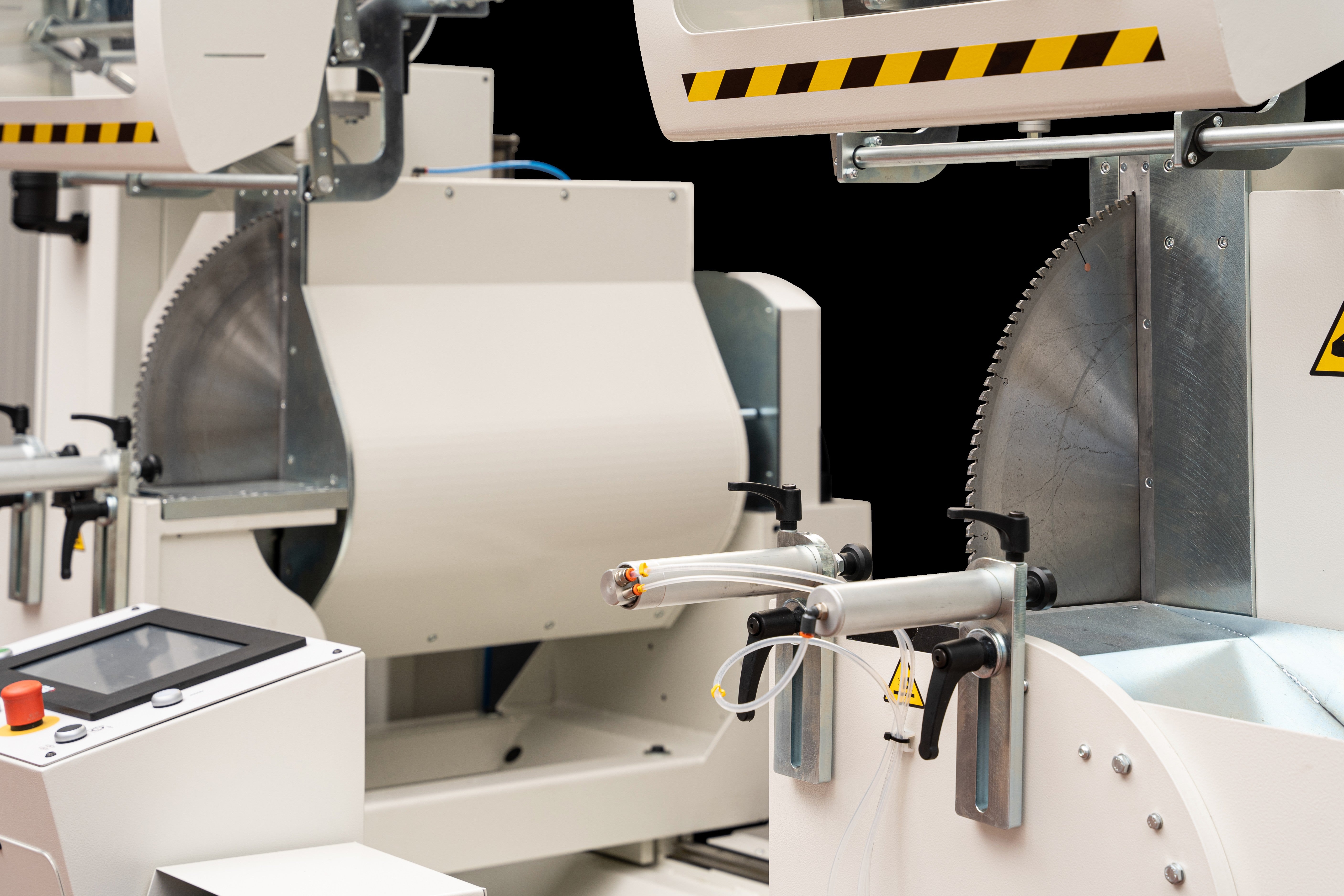

Aluminum Double Head Cutting Saw (600mm Blades) for Industrial Profile Cutting
Cut aluminum and PVC profiles faster with repeatable angles and clean finishes. This double head mitre saw is built for window/door fabricators and extrusion shops that need high throughput, stable accuracy, and safe automation.
Quick Specs
| Materials | Aluminum & PVC profiles |
|---|---|
| Blade diameter | 600 mm |
| Motor | 3 kW |
| Blade speed | 1,800 RPM |
| Angle range | 20° to 135° (electronic tilt; pneumatic option available) |
| Max cutting length | Up to 6,000 mm (with extensions on select models) |
| Control | PC/Windows interface with 10.4" color touchscreen |
| Safety | CE compliant, pneumatic clamps, profile support conveyors |
Tip: Keep these specs above the fold—Google and buyers both scan this first.
What You Get: Accuracy, Speed, and Repeatability
- Consistent cut quality: Dual cutting heads reduce rework and improve angle repeatability.
- Faster throughput: Synchronized heads increase output while minimizing downtime.
- Lower scrap: Stable clamping and controlled angle adjustment help reduce waste.
- Operator-friendly: Touchscreen workflow for setup, monitoring, and production control.
- Factory-ready automation: Remote connectivity and Industry 4.0 compatibility (where equipped).
Cutting Angles and Precision Control
Electronically controlled tilting angles from 20° to 135° support common mitre and compound cuts used in aluminum window, door, and extrusion work. Optional pneumatic settings are available for specific production environments.
Cutting Capacity for Long Profiles
Designed for industrial profile workflows, the system supports long-length production with maximum cutting lengths up to 6,000 mm (with extensions on select models). Conveyors and profile supports help keep material stable across the full stroke.
Control System: Manual + CNC-Friendly Operation
The integrated PC/Windows interface and 10.4" color touchscreen simplify operation for both manual setups and CNC-controlled workflows. Monitor job progress and adjust parameters quickly to maintain consistent output.
Industrial Build and Safety
- Rigid base: Strongly ribbed, electro-welded steel frame for stability.
- Secure handling: Pneumatic clamps and profile support systems for safer operation.
- Compliance: Built to meet CE safety standards.
Typical Applications
- Aluminum window and door fabrication
- Curtain wall and architectural profiles
- Industrial extrusion cutting
- PVC profile cutting (where applicable)
Explore More
FAQ
What materials can this double head saw cut?
It is designed for aluminum and PVC profiles. Confirm the exact tooling/blade type for your material and finish requirements.
What is the blade size and motor power?
The machine is equipped with 600 mm blades and a 3 kW motor operating at 1,800 RPM.
What cutting angles are supported?
Electronically controlled tilting angles range from 20° to 135°, with optional pneumatic settings available.
How long of a profile can it cut?
Maximum cutting length is up to 6,000 mm with extensions on select models.
Is it suitable for automated or CNC workflows?
Yes. The control system uses a PC/Windows interface with a 10.4" touchscreen and can support CNC-friendly operation depending on configuration.
