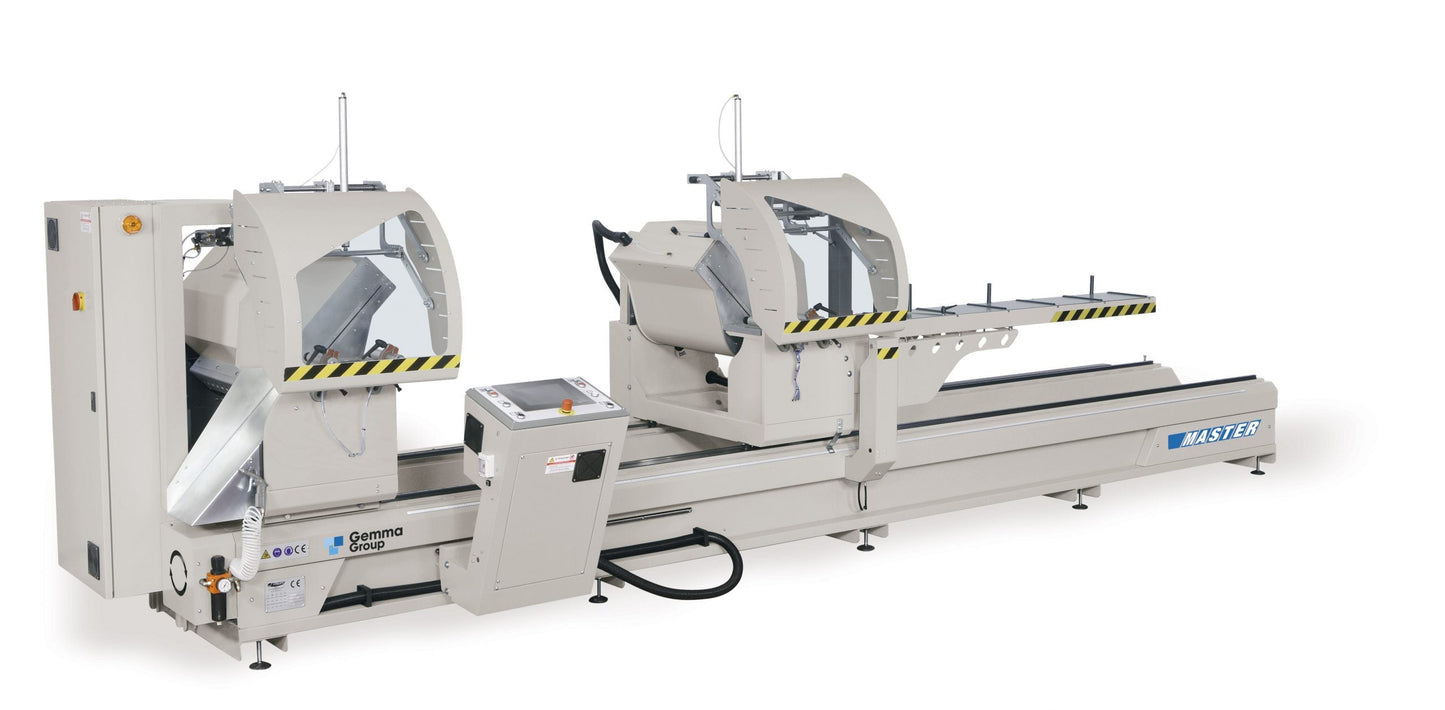

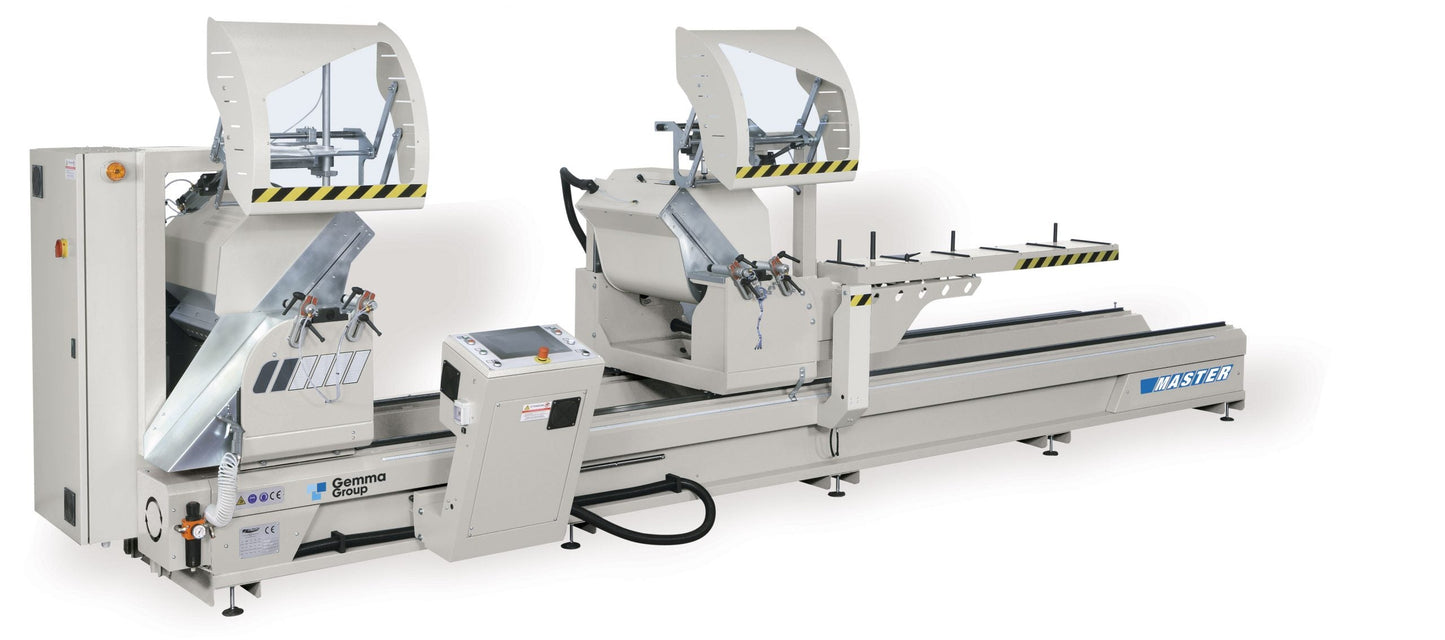

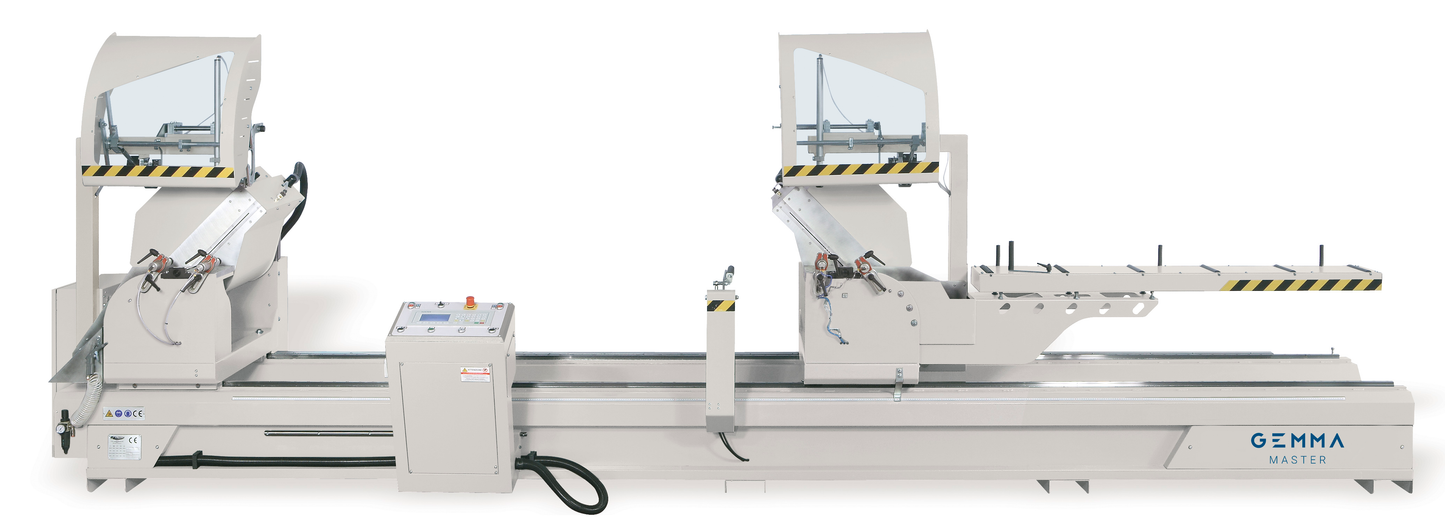

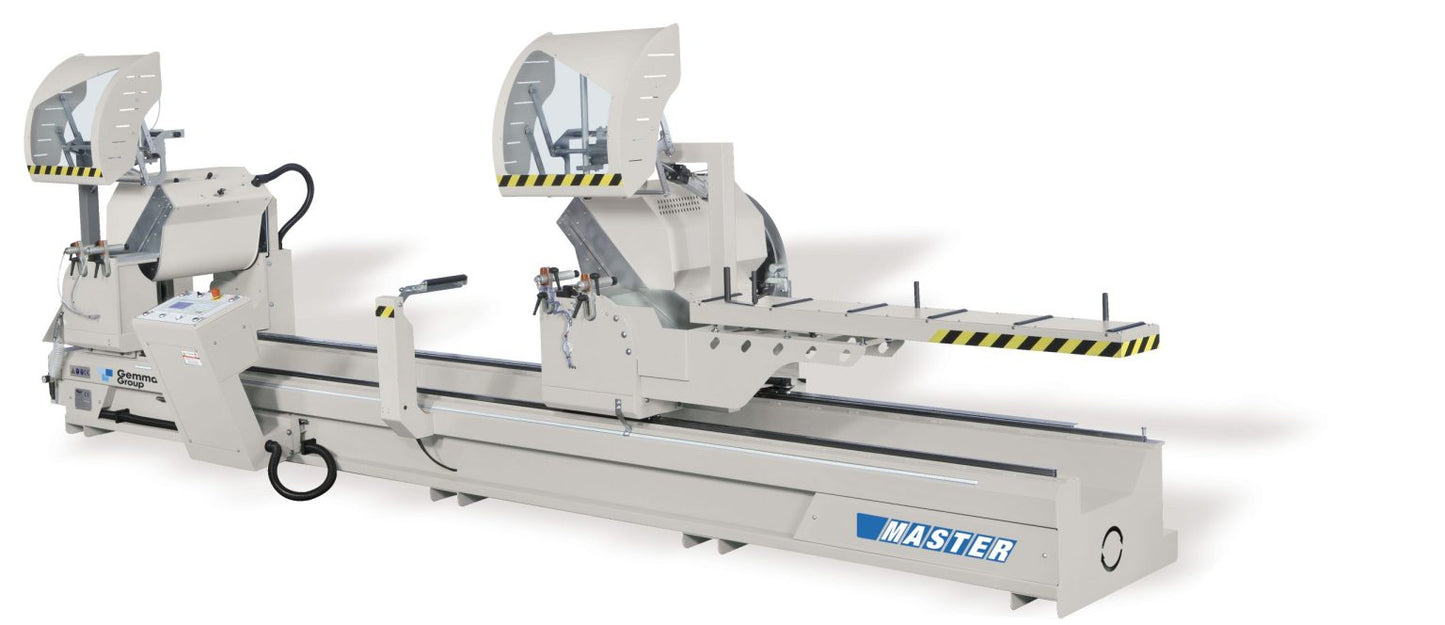

MASTER: High-Performance Double Head Miter Saw for Aluminum Profiles
Welcome to the next level of precision and efficiency with the Master A and Master P models. Designed to meet the exacting standards of modern manufacturing, these double head miter saws are tailored for cutting aluminum and PVC profiles with unmatched cutting quality and reliability.
Two-head miter saw with front blades. Strongly ribbed base in electro-welded steel. Left cutting unit fixed, right unit with automatic movement controlled by software. Feed roller combined with the mobile head. Master A is equipped as standard with 4 horizontal pneumatic clamps.

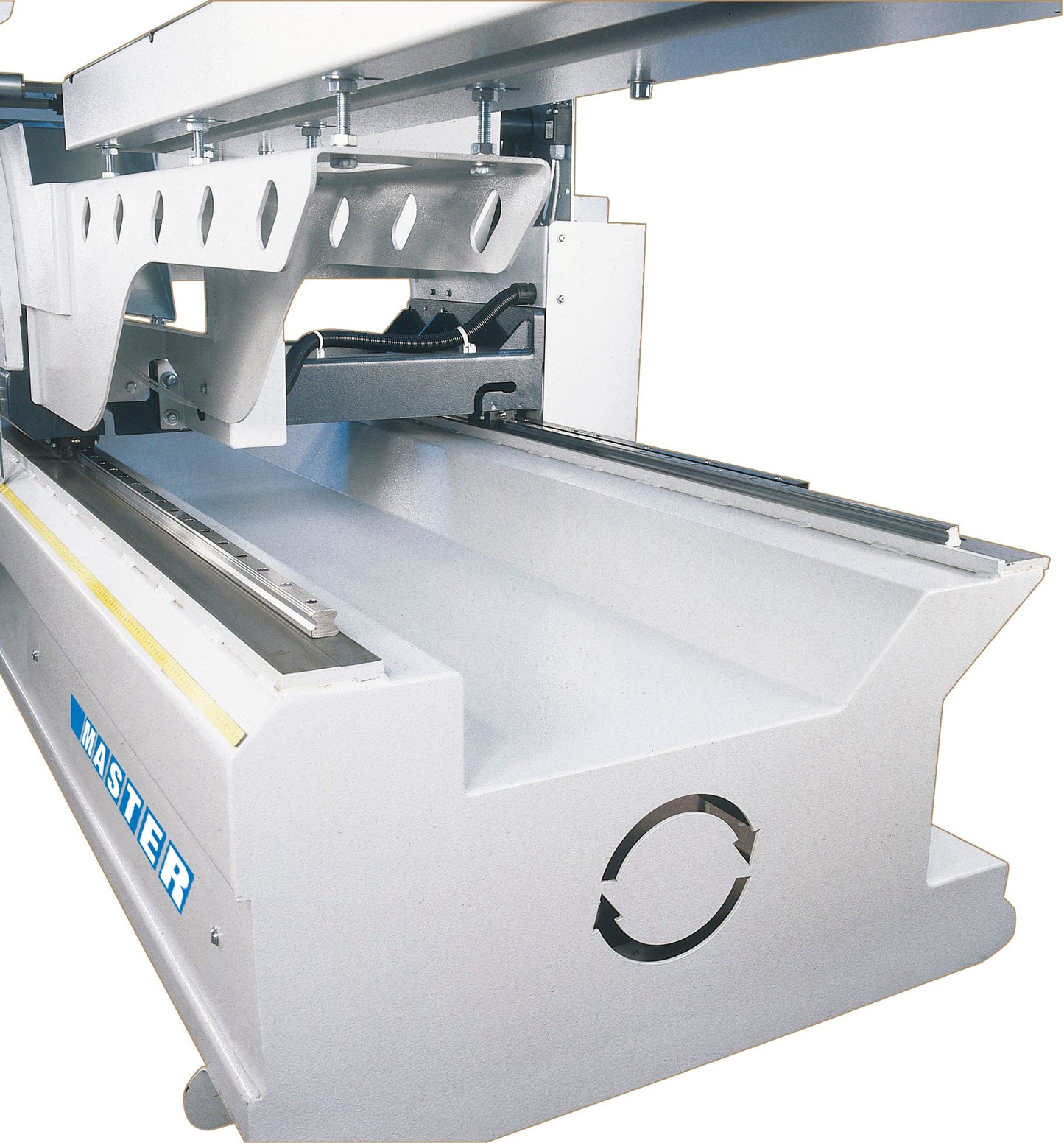

The cutting units are controlled by a 3 kW motor at 1.800 rpm and are equipped as standard with 600 mm diameter widia blades. Micro-drop cut lubrication. X-axis travel of 5.000 mm (optional 6.000 mm). X axis movement on linear guides with rectified rack. Inclination angles from 20° to 135° with electronic adjustment. Possibility of working on pieces even longer than the X-stroke.

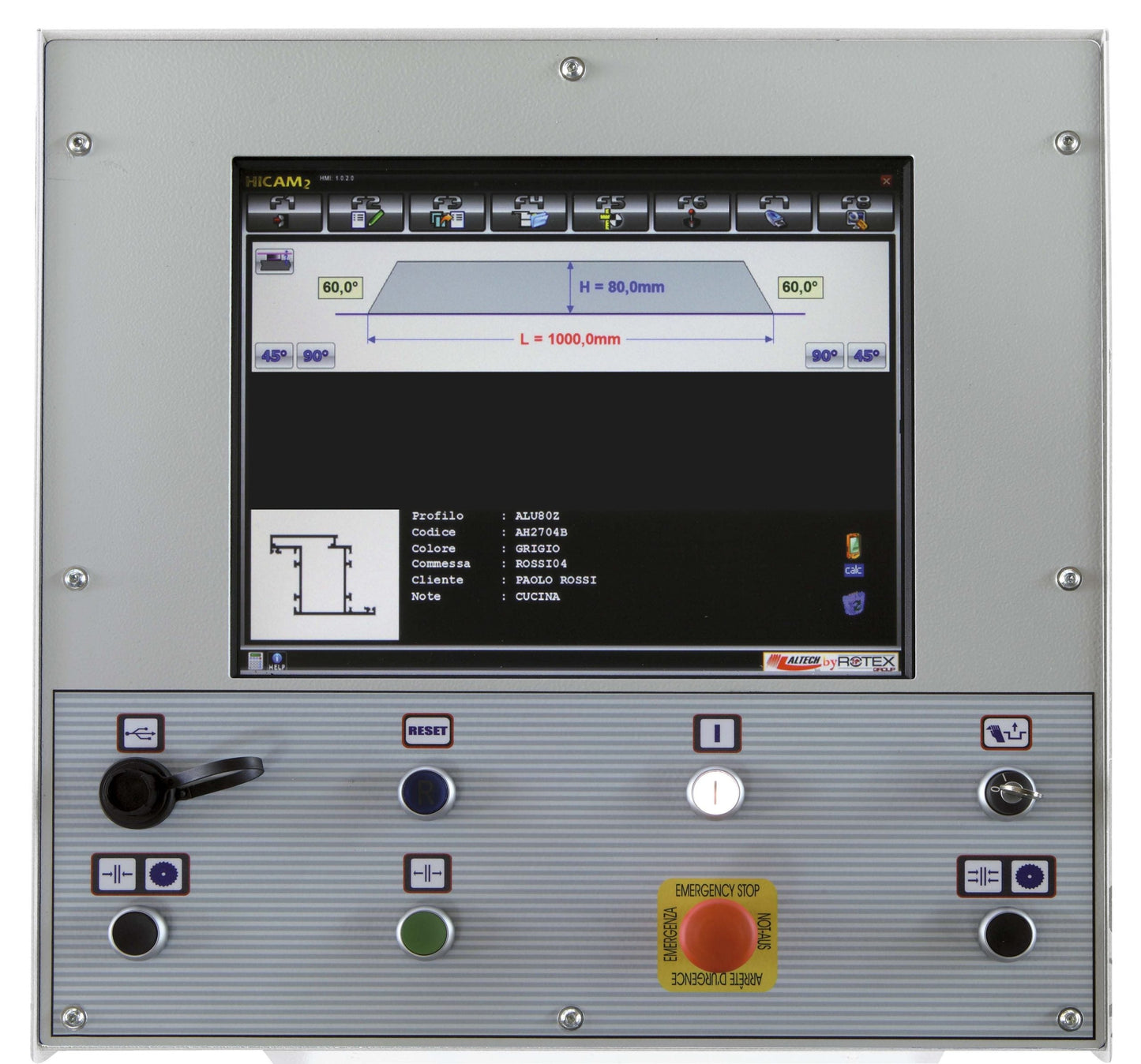

Operator interface on PC-Windows equipped with 10,4” color touch screen. The machine is equipped as standard with safety and protection devices in compliance with CE regulations.
Model Comparison
|
Feature |
Master A |
Master P |
|---|---|---|
|
Tilting Angles |
20° - 135° (electronic control) |
+20°/+45°/90°/-45° with mechanical stops for intermediate degrees.(pneumatic control) |
|
Maximum Cutting Length |
6000 mm (with extension) |
5000 mm |
Both models easily cut aluminum profiles, ensuring high productivity and consistent results.
Share
Master A & Master P: High-Performance Double Head Miter Saws for Aluminum Profiles
Key Features
Robust Construction
- Strong construction specially designed for industrial-grade operations.
- Both models ensure stability and durability, essential for cutting processes requiring angle precision and smooth operations.

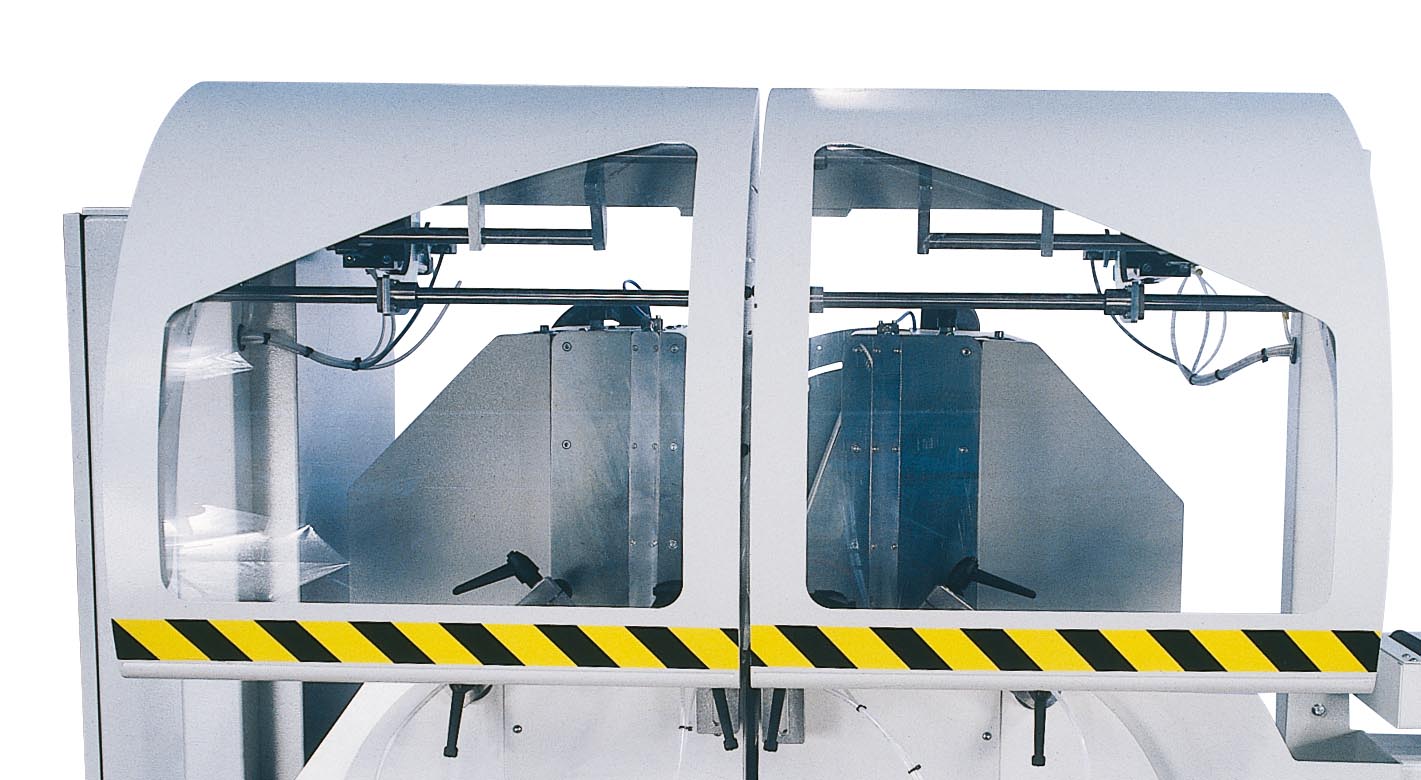

Cutting Heads & Blade Performance
- Equipped with Ø600 mm saw blades, engineered to deliver precise and clean cuts.
- Blade speed reaches up to 2800 RPM (Master A) and 2760 RPM (Master P), ensuring optimal performance for a variety of materials, including aluminum extrusions.
Advanced Cutting Capabilities
- Automatic double head miter systems allow cutting heads to tilt at intermediate angles from 20° to 135°.
- Cutting quality is maintained across all operations, whether working at maximum or minimum cutting length (370 mm).
Control and Connectivity
- Integrated touch screen control panels simplify operations and provide real-time feedback.
- Compatible with Industry 4.0 standards, both models feature remote connection capabilities through Ethernet and Wi-Fi for seamless integration.
Profile Support & Automation
- Automatic positioning of the movable head ensures high efficiency and precise alignment.
- Includes profile support conveyors and pneumatic central supports to stabilize materials during the cutting process.
Why Choose the Master Series?
With servo motors driving precision and hydro pneumatic systems enhancing operational reliability, the Master A and Master P are trusted tools for manufacturers demanding versatility and performance. Their ability to cut automatically at various angles makes them ideal for aluminum and PVC profiles industries.
Elevate Your Cutting Process Today!
Whether you prioritize advanced automation or cost-effective performance, the Master A and Master P have you covered. Experience strong construction and the latest in fully automatic sawing machine technology by choosing the right model for your needs.
