Precision Cutting with Our BASIC Double Head Miter Saw for Aluminum Profiles

Overview

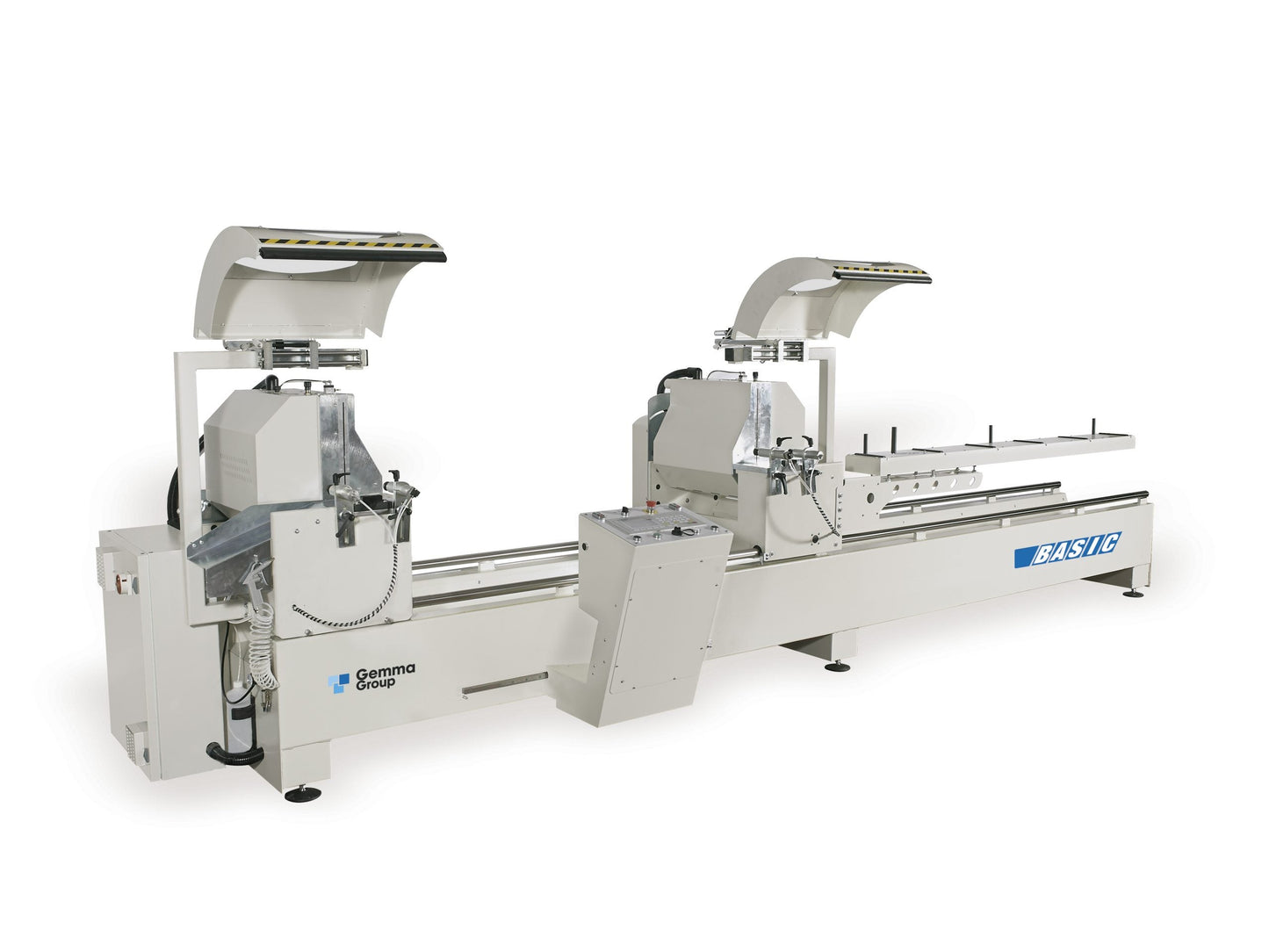

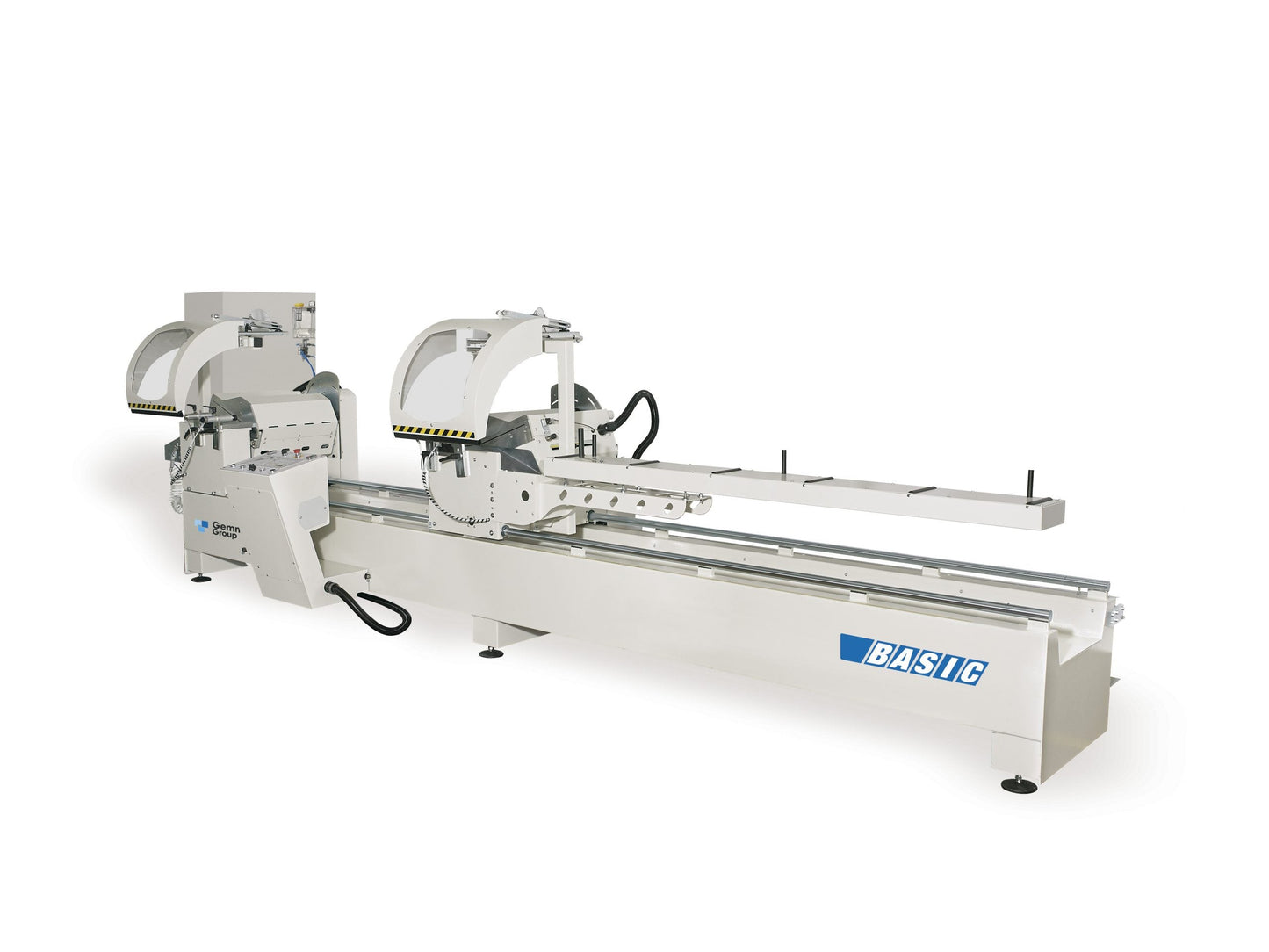

Achieve precision and efficiency in your production with our double head miter saw, meticulously designed for aluminum extrusions, PVC profiles, and other high-demand applications. Built on a robust electro-welded steel base, this machine combines durability with superior cutting performance. With a fixed left head and a mobile right head controlled by software, it’s perfect for ensuring consistent, accurate cuts every time.

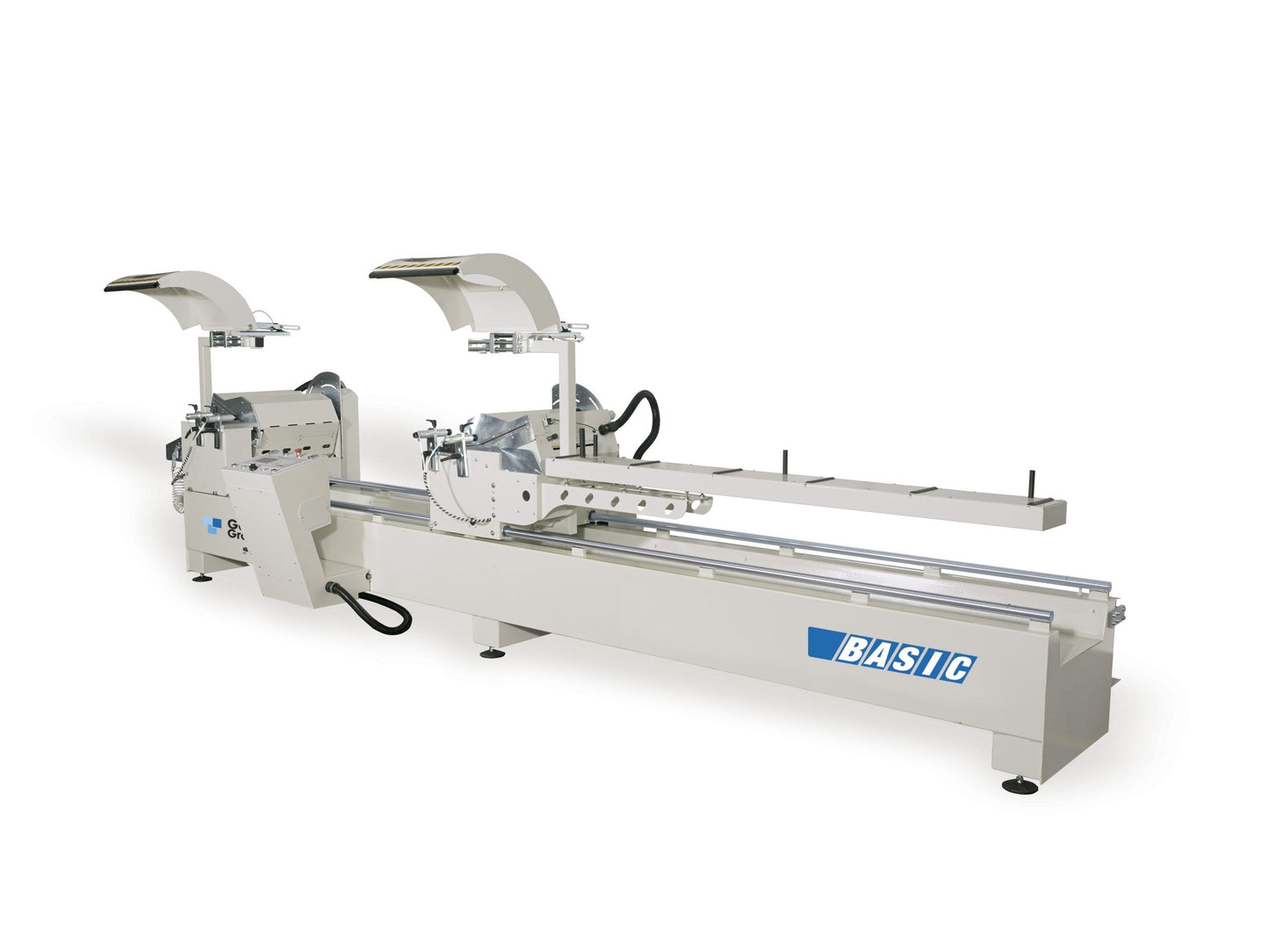

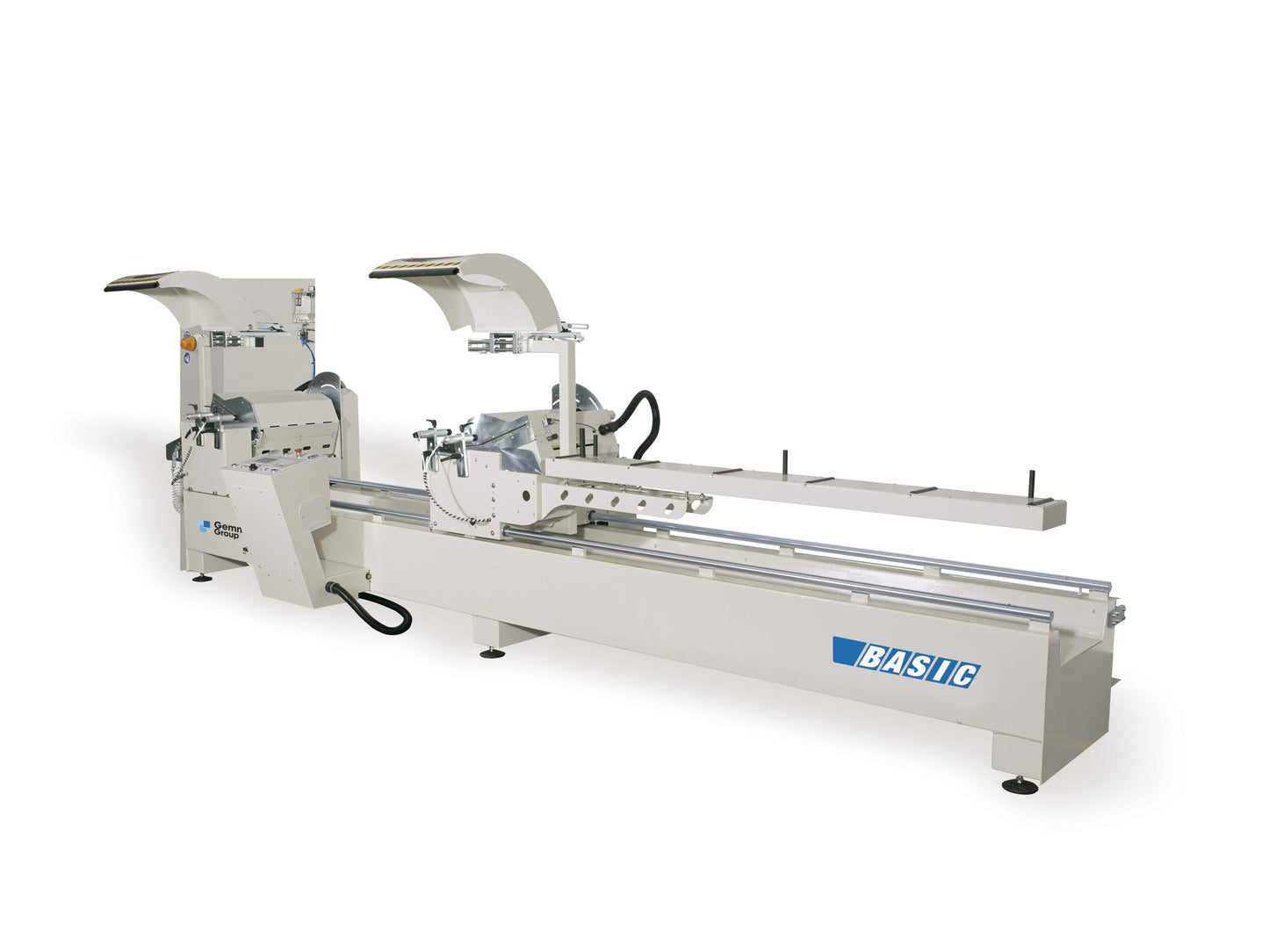

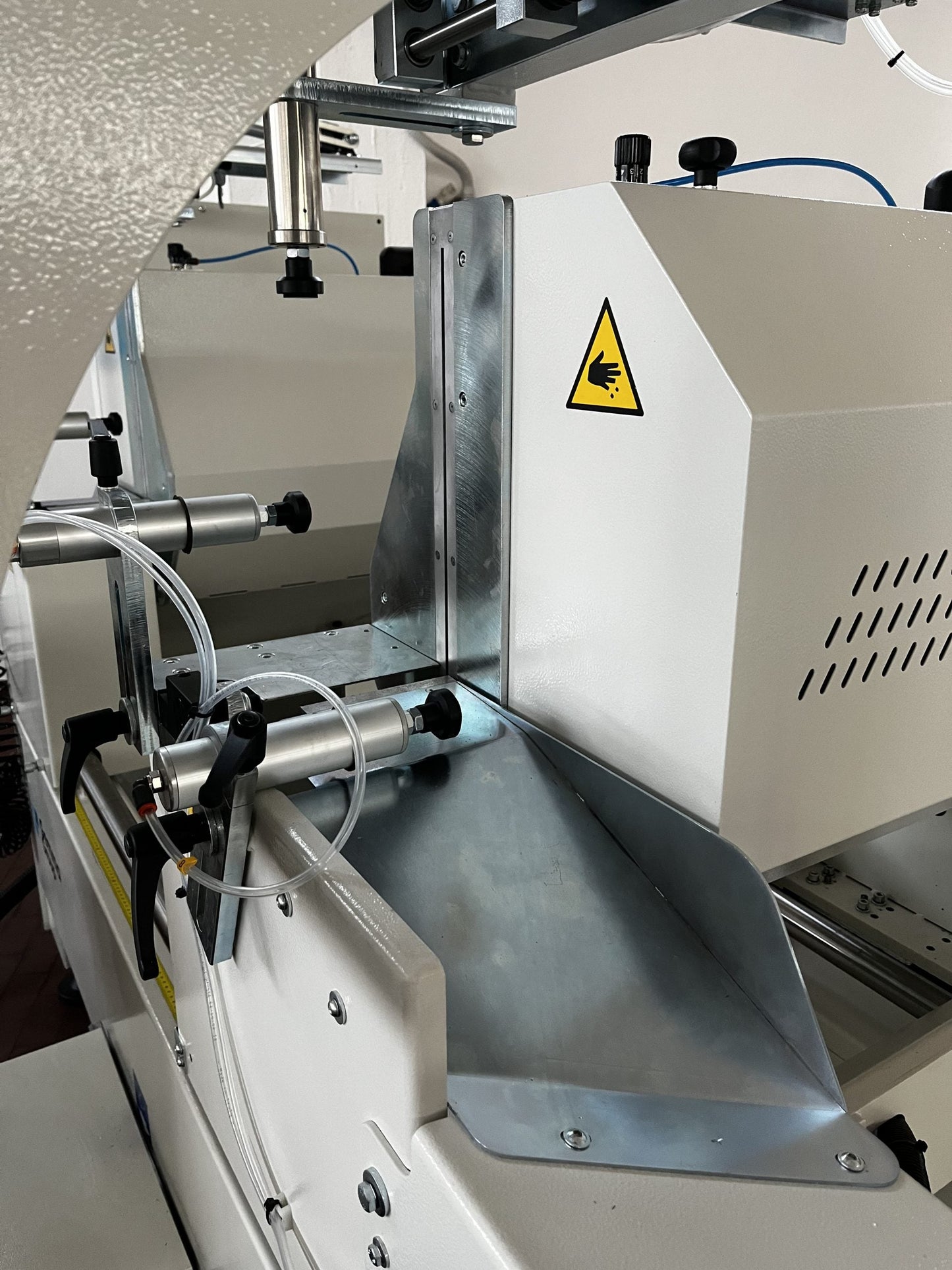

Two-head miter saw with front blades. Strongly ribbed base in electro-welded steel. Left cutting unit fixed, right unit with automatic movement controlled by software. Feed roller combined with the mobile head. Basic A is equipped as standard with 4 horizontal pneumatic clamps.

The cutting units are controlled by a 1,8 kW motor at 1.800 rpm and are equipped as standard with 500 mm diameter widia blades. Micro-drop cut lubrication. X-axis travel of 4.600 mm. X-axis movement on rectified linear guides. Possibility of working on pieces even longer than the X-stroke.

It is possible to perform machining on longer pieces than with the machine. Operator interface on PC-Windows equipped with 10,4” color touch-screen. The machine is equipped as standard with safety and protection devices in compliance with CE regulations.

Download Product details PDF for BASIC P

Download Product details PDF for BASIC A

Cutting Unit Differences

While both the Basic A and Basic P models deliver excellent performance, their cutting units differ:

  • Basic A: Offers electronic tilting, enabling precise angle adjustments between 20° and 135° via software. This is ideal for complex, high-precision cuts.

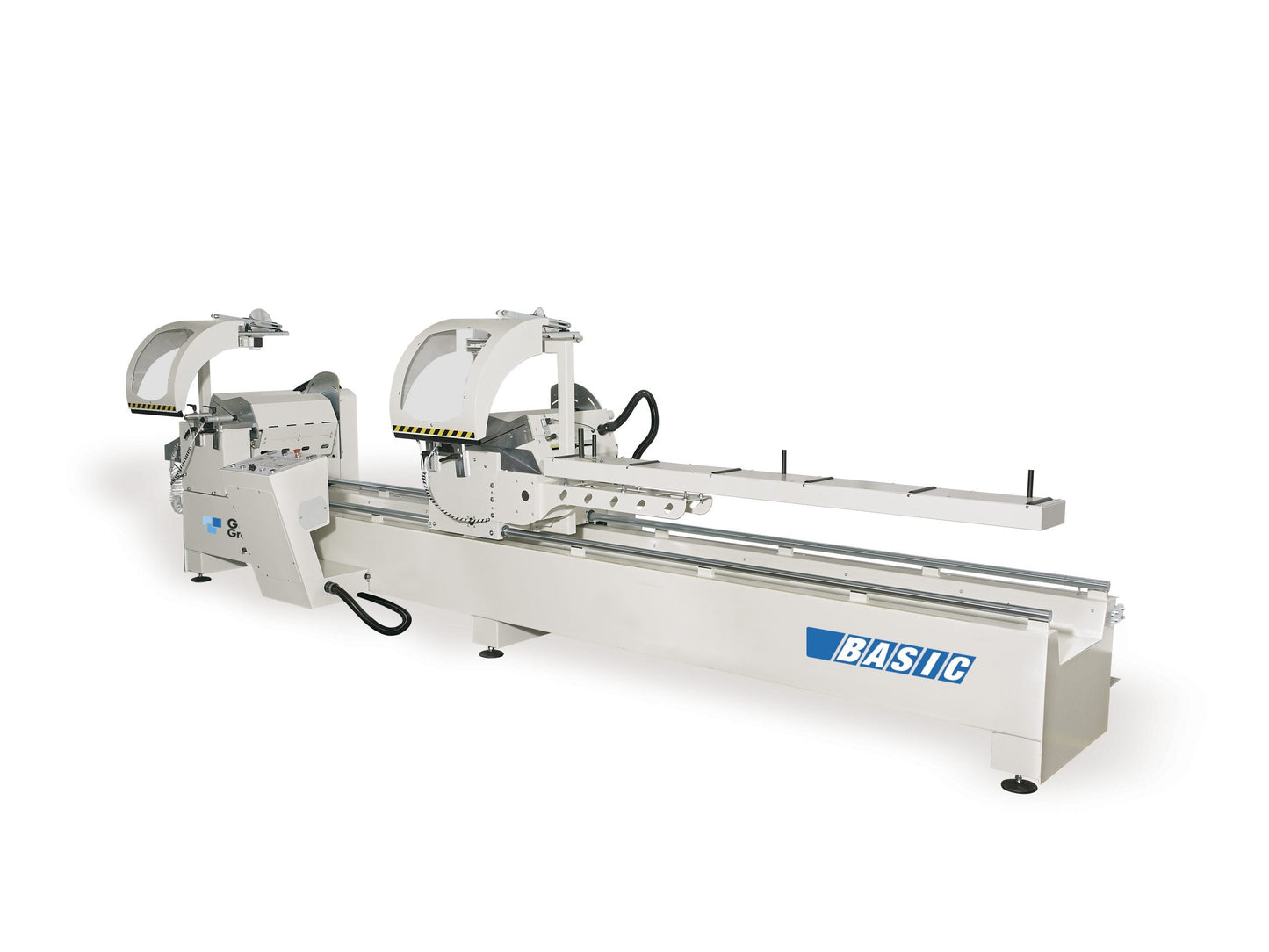

  • Basic P: Utilizes pneumatic tilting with preset stops at key angles (20°, 45°, 90°, and 135°), complemented by mechanical stops for intermediate adjustments, making it perfect for repetitive production tasks.

View full details

BASIC Double Head Miter Saw for Aluminum and PVC Profiles

Key Features

High-Performance Cutting:

  • Equipped with 500 mm blade diameter widia saw blades for seamless operation.
  • Blade speed of 2,800 rpm, driven by a 1.8 kW motor, ensures smooth and precise cuts across various materials.

Advanced Technology:

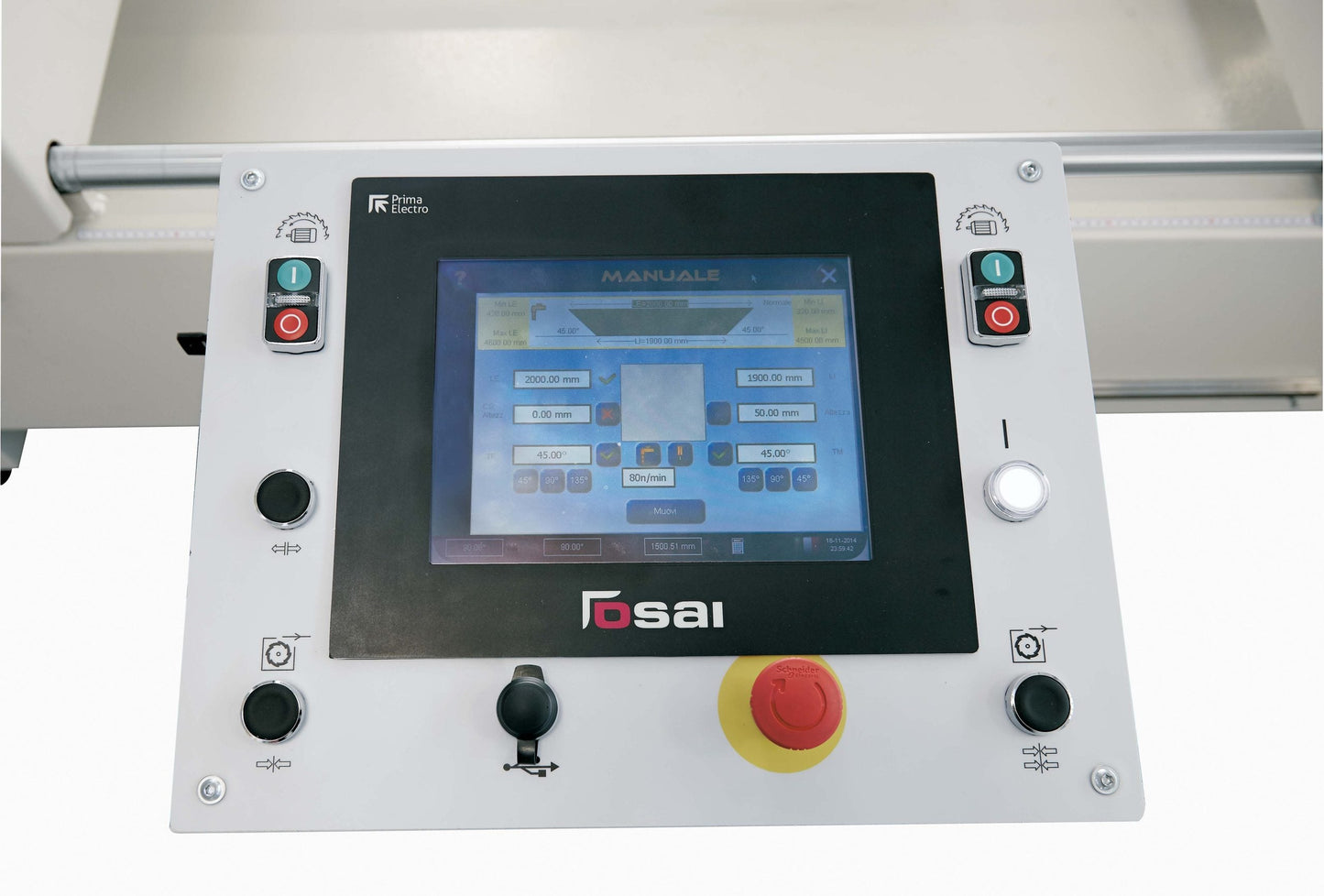

  • Electronic control panel with a 10.4” PC-Windows touchscreen, simplifying machine programming and operation.
  • Compatible with Industry 4.0 standards through Ethernet and Wi-Fi connectivity for teleassistance and program updates.

Cutting Flexibility:

  • Handles a wide range of angles from 20° to 135° with accurate adjustment mechanisms.
  • Large X-axis travel of 4,600 mm, enabling machining of longer profiles with ease.

Safety and Compliance:

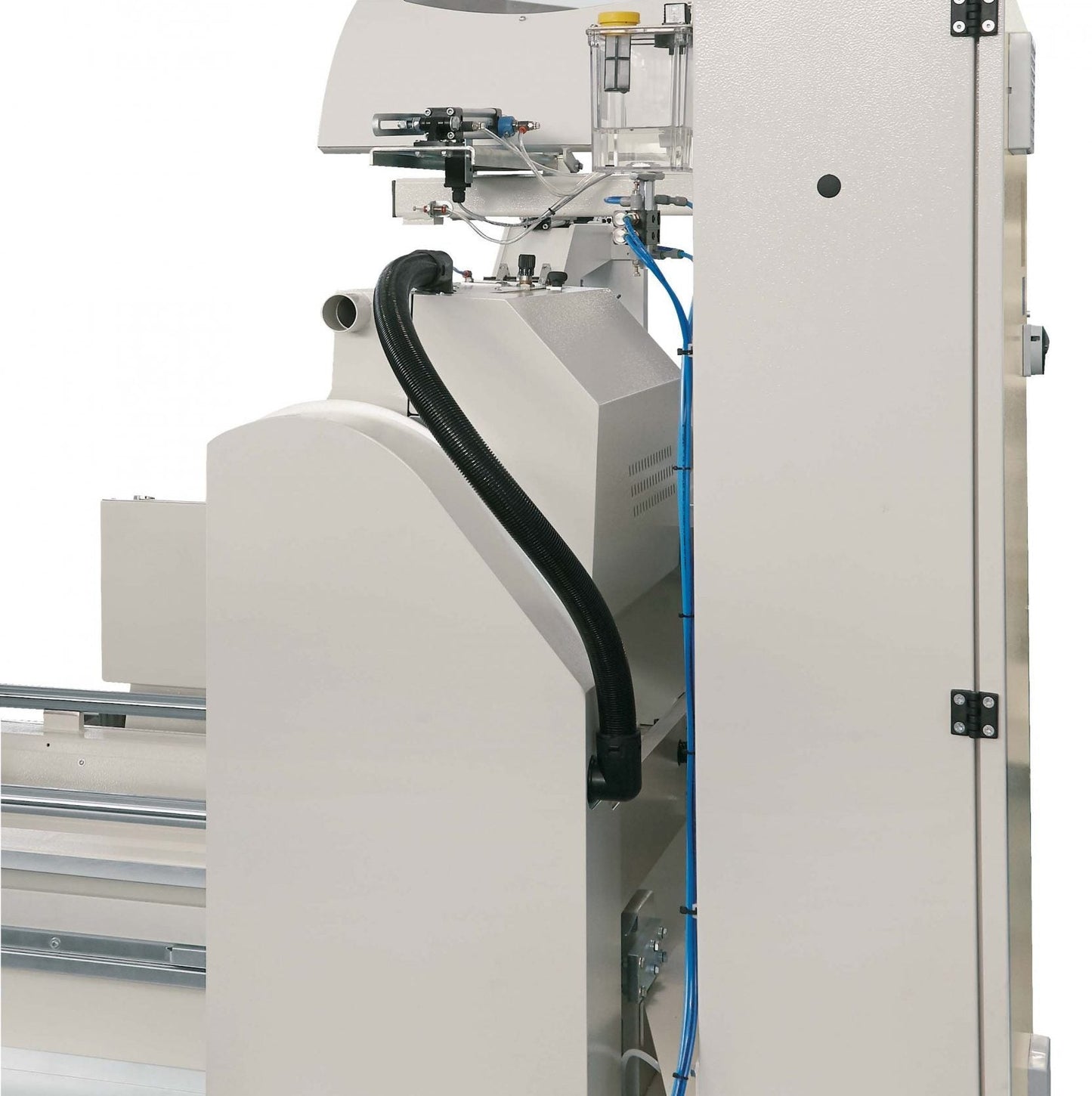

  • Integral cutting area protections meet CE safety regulations, offering a secure working environment.
  • Customizable options such as barcode printers for better process integration.

Durable and Efficient Design:

  • Strongly ribbed construction for reduced vibrations and enhanced cutting accuracy.
  • The moving head operates on rectified linear guides, ensuring consistent performance.

Tailored for Aluminum and PVC Profiles

Our double head mitre saw is optimized for cutting aluminum profiles and PVC profiles, delivering exceptional results for extrusion manufacturers, window makers, and general fabrication industries. Its hydro-pneumatic blade operation ensures smooth, clean cuts, while precise tilting mechanisms enhance productivity.

Frequently Asked Questions

  • Can I use a miter saw to cut aluminum? Yes! With the correct saw blade and settings, our double head miter saw is ideal for cutting aluminum.
  • What blade is best for cutting aluminum on a miter saw? Use widia blades with a diameter of 500 mm, included as standard with our machine, for optimal performance.
  • What saw is used to cut aluminum? A double head miter saw is the best choice for precision and versatility in cutting aluminum profiles.
  • What is the advantage of a dual bevel miter saw? Dual bevel capability allows for accurate cutting at various angles without repositioning the workpiece, increasing efficiency.

Conclusion

Whether you're cutting aluminum extrusions or PVC profiles, our double head miter saw combines cutting-edge technology with unmatched accuracy and quality. Choose the Basic A for advanced electronic adjustments or the Basic P for efficient, straightforward operations.

Contact us today to learn more about which model suits your production needs!
