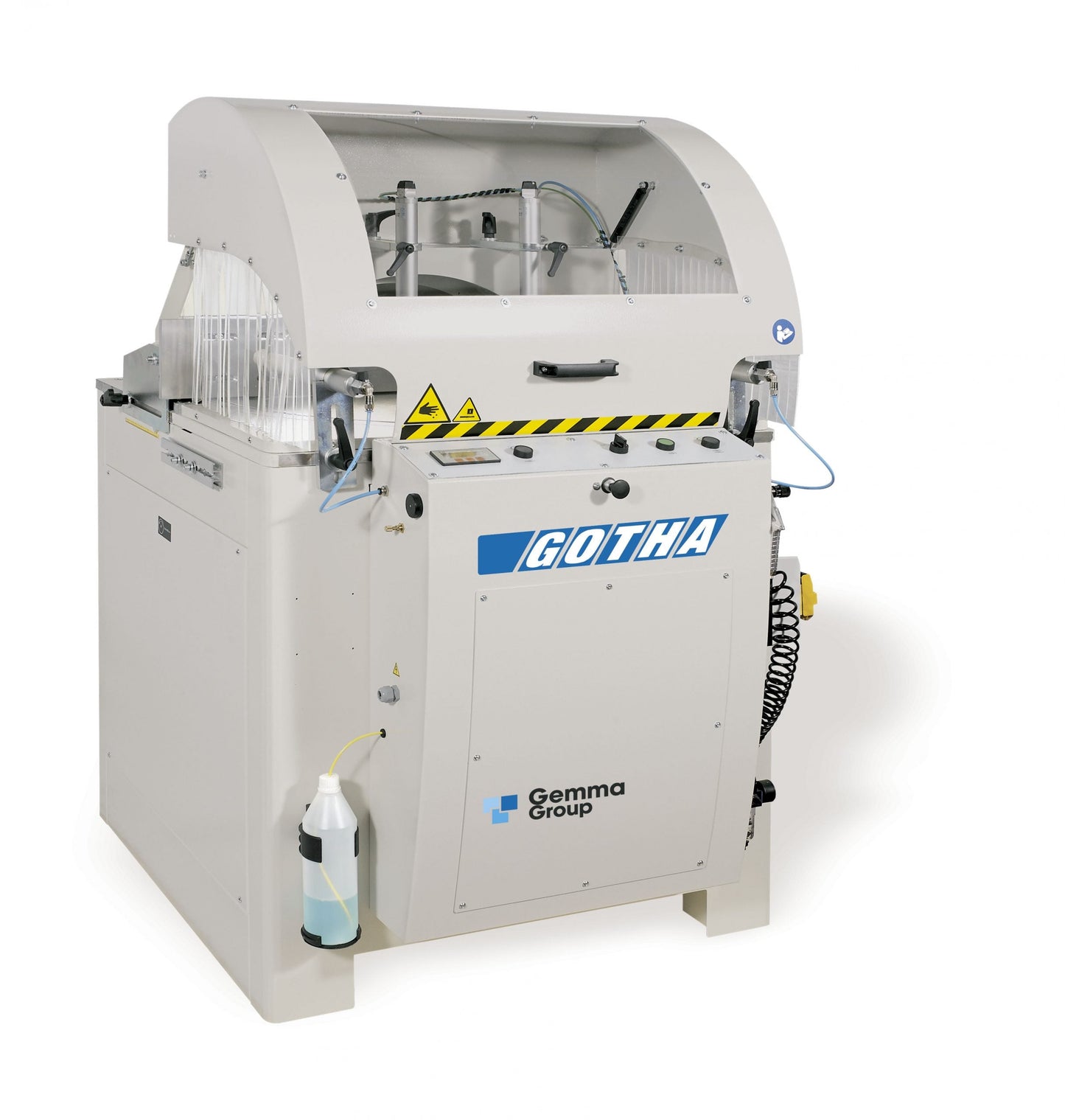

• Front view of the Gotha single-head cutting-off machine by Gemma Group, featuring an electro-welded steel structure, safety protections, and a 600 mm blade designed for precision cuts.

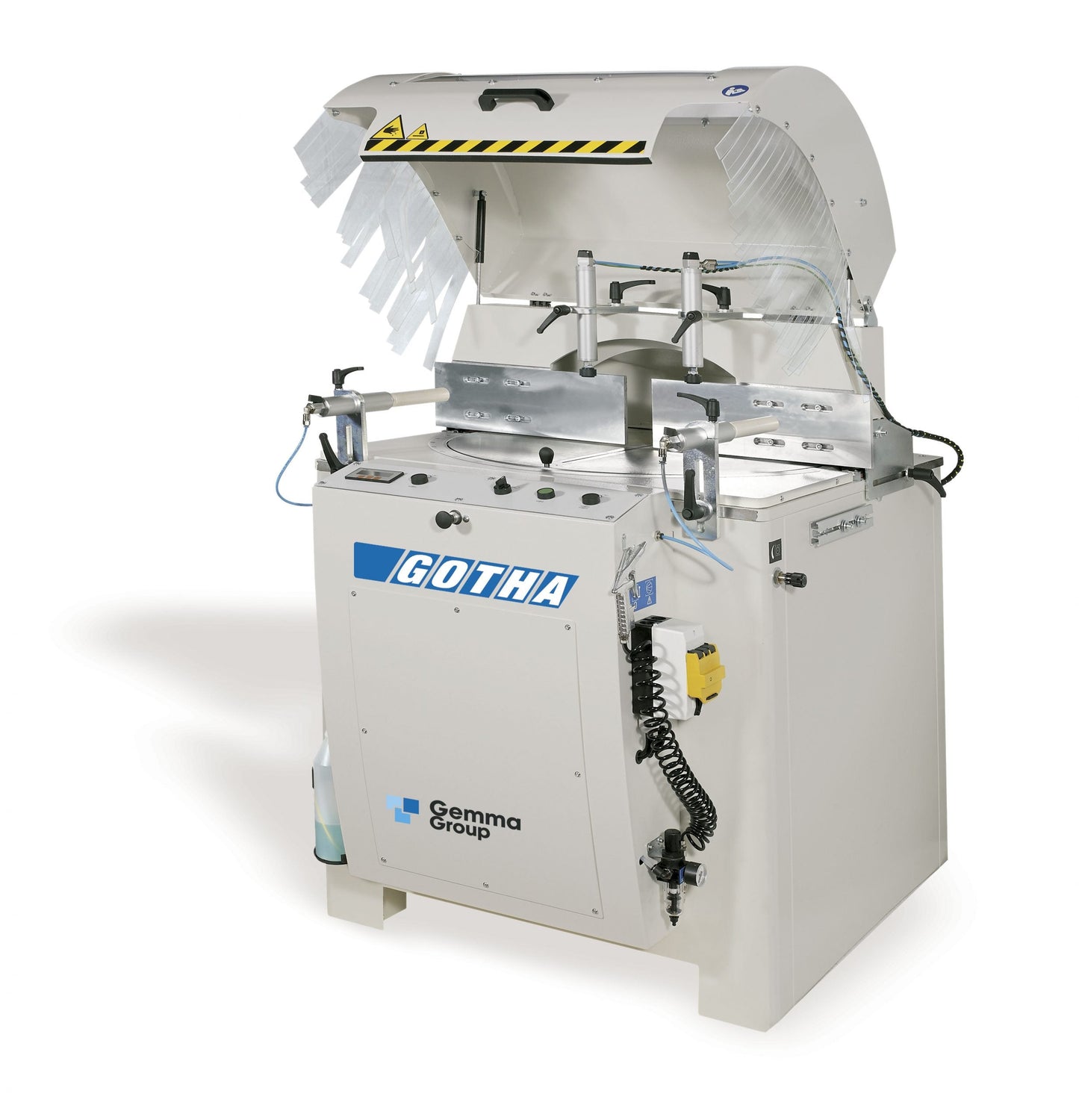

  • Gotha single-head cutting-off machine by Gemma Group with its protective hood open, showcasing the 600 mm widia blade and adjustable cutting angles for precise operations.

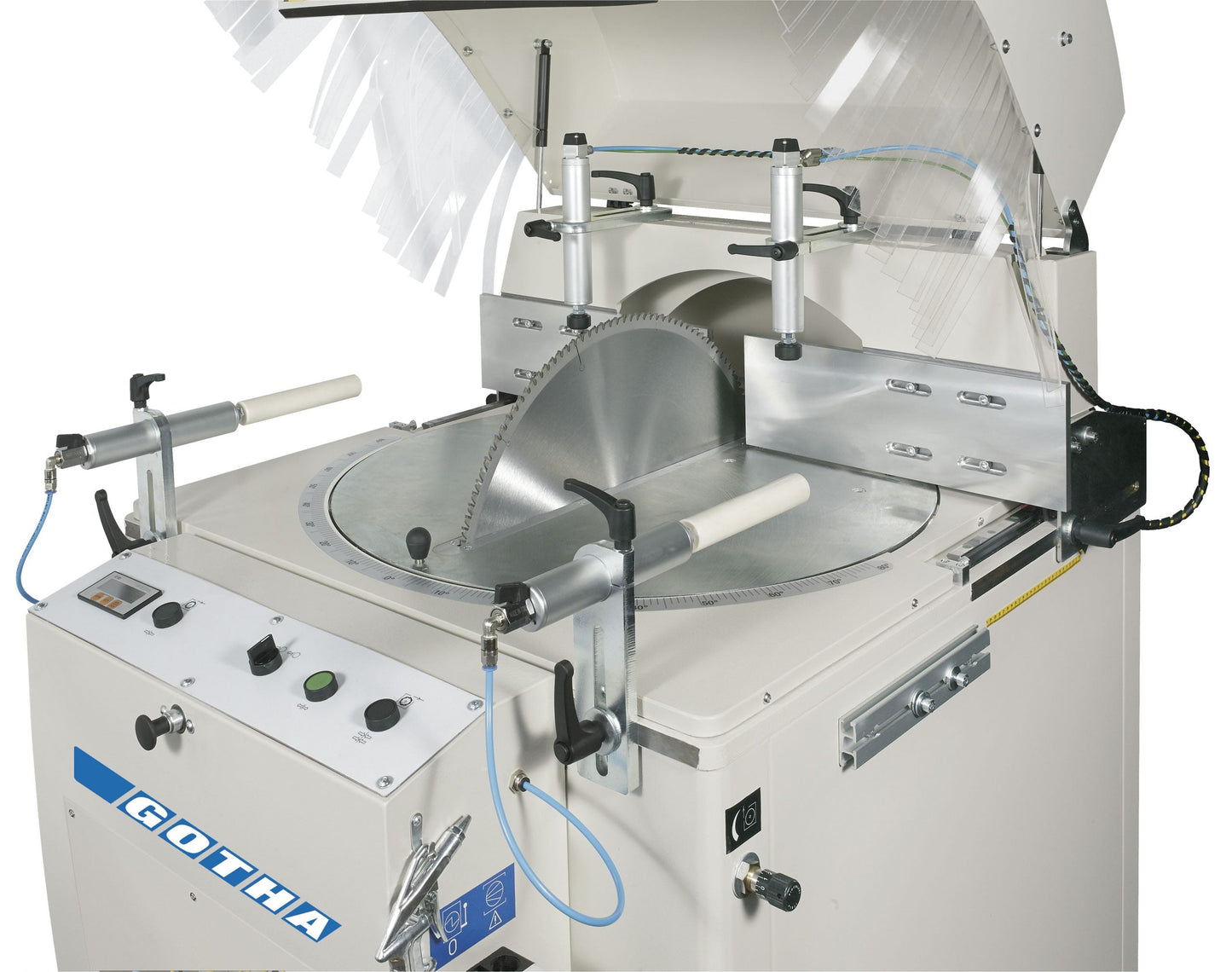

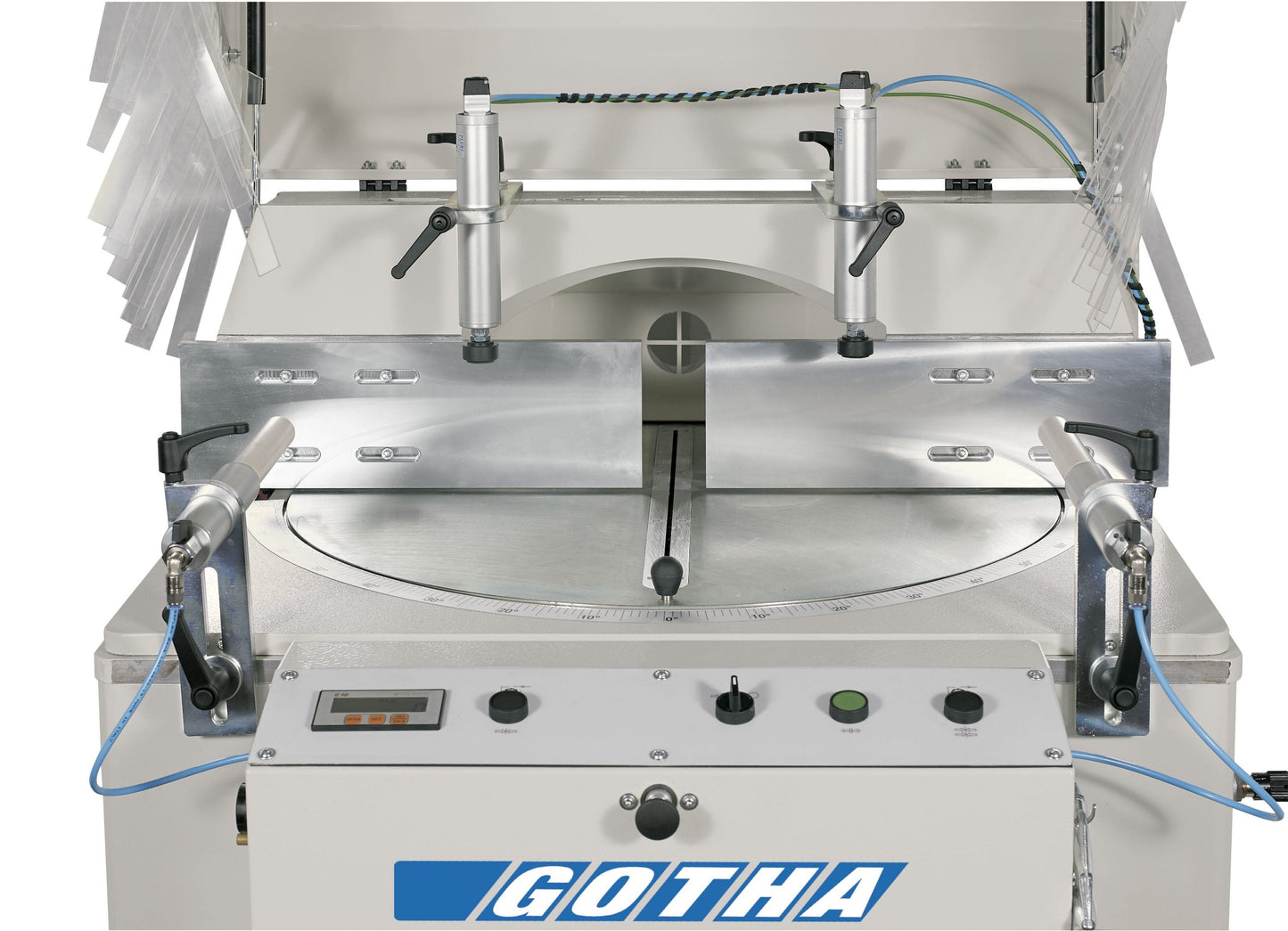

  • Close-up view of the Gotha single-head cutting-off machine's control panel and dual pneumatic clamps, ensuring precise cutting with adjustable angles and Venturi lubrication system.

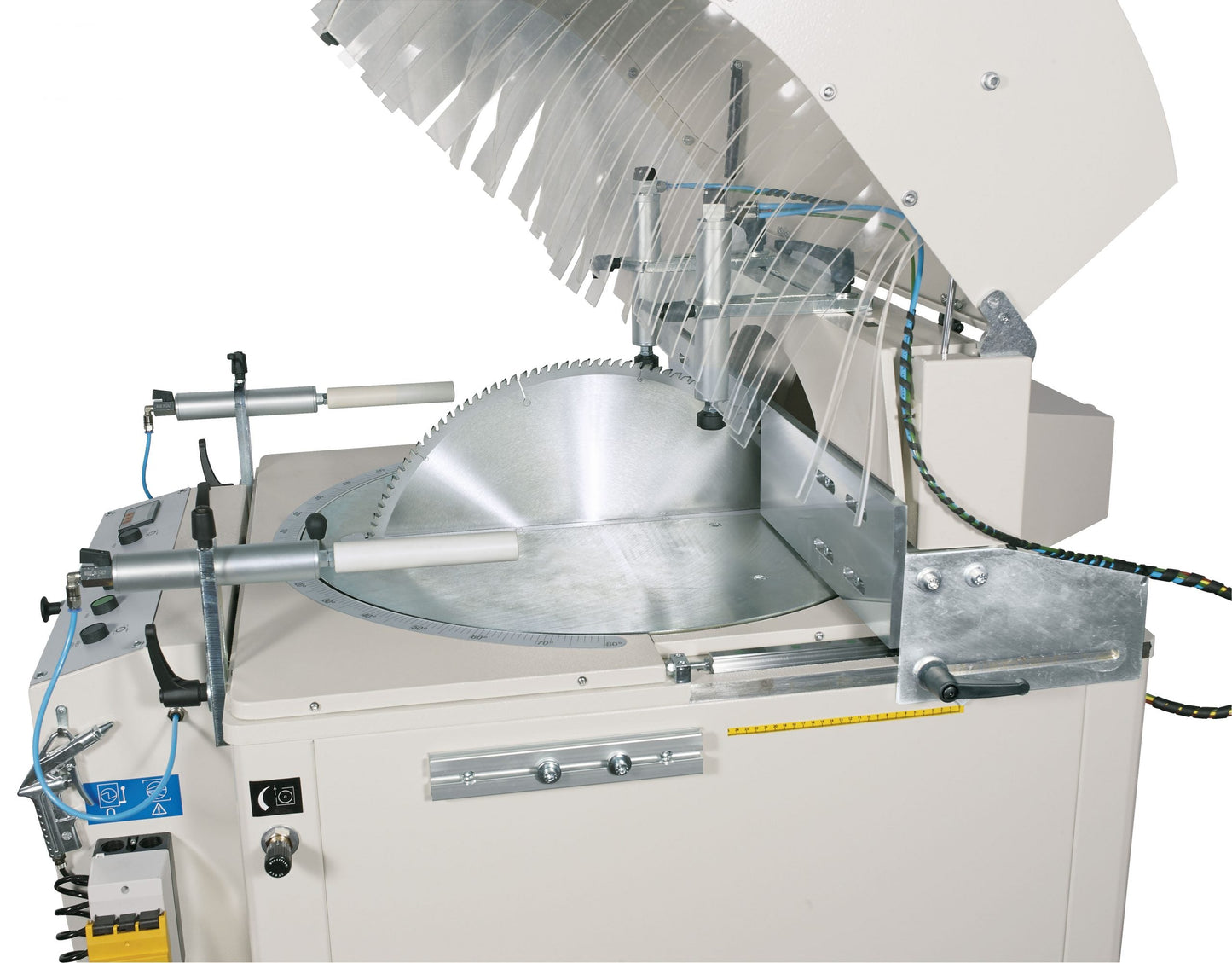

  • Detailed side view of the Gotha single-head cutting-off machine, highlighting the 600 mm widia blade, safety protections, and precision adjustment features for industrial cutting tasks.
  • Angled view of the Gotha single-head cutting-off machine showing the 600 mm widia blade, pneumatic clamps, and intuitive control panel for precise industrial cutting applications.
1 5

Gemma

GOTHA

GOTHA

$26,795.00 CAD
$26,795.00 CAD
Sale Sold out

Single head miter saw with ascending blade. The machine has an electro-welded steel base. There are 2 vertical pneumatic clamps as standard. Cutting unit motor power 3 kW with widia blade diameter 600mm.

Mechanical stops to quickly select the 45°/90°/135° angles. Cutting angle from 10° to 170°. Nebulized cutting lubrication (Venturi system). Sliding mobile square for trimming. The machine is equipped as standard with safety and protection devices in compliance with CE regulations.

Download Product details PDF

View full details

Gotha Single-Head Cutting-Off Machine

The Ultimate Solution for Precision Cutting of Aluminum Profiles

The Gotha Single-Head Cutting-Off Machine is designed for professionals who demand superior accuracy and efficiency. Featuring a Ø 600 mm upstroke blade and advanced features, this machine ensures seamless operations for cutting aluminum profiles and other materials. Whether you need precise angles or robust performance, the Gotha delivers unmatched reliability. It also boasts automatic cutting processes, enhancing efficiency and precision in handling aluminum profiles.

Key Features of the Gotha Single-Head Cutting-Off Machine:

  • Versatile Cutting Angles: Adjustable from 10° to 170°, with mechanical stops for quick selection of 45°/90°/135° angles.
  • Durable Construction: Built on an electro-welded steel base for long-lasting stability.
  • Advanced Cutting Technology:
  • Enhanced Cutting Capacity:
  • Efficient Blade Feed: Oleo-pneumatic blade output for smooth and controlled operations.
  • High Power Output:
  • Safety-Compliant Design: Integral cutting area protection that complies with CE safety standards.

Why Choose the Gotha?

Cutting Aluminum Profiles with Ease

The Gotha is optimized for cutting aluminum profiles and aluminium profiles, ensuring clean, burr-free edges. Whether you’re fabricating for industrial use or architectural applications, its precision meets the highest standards.

Compatible Blades for Aluminum

Equip your machine with the Widia diamond saw blade to achieve exceptional performance when working with aluminum or other metals. The machine’s design ensures compatibility with high-performance blades for diverse materials.

Unmatched Precision

From its pivoting worktable to its sliding square for trimmings, the Gotha guarantees accuracy for every cut, making it ideal for aluminum and beyond.

Technical Specifications

  • Power Supply: 400 V / 50 Hz
  • Compressed Air: 7 Bar; Air consumption per cycle: 10 Nl
  • Cutting Speed: Max 6 m/min
  • Machine Dimensions: 1,100 x 1,230 x 1,650 mm
  • Weight: 310 kg

Optional Add-Ons

Enhance your Gotha with these accessories:

  • Spare Ø 600 mm Widia Blade.
  • Laser Device for cutting line precision.
  • Horizontal Pneumatic Clamps for extra stability.
  • UL-CSA Setup for USA and Canada standards.
  • Autotransformer for special voltage requirements.

Frequently Asked Questions

Can I cut aluminum with a mitre saw?
Yes, the Gotha single-head cutting-off machine is specifically designed for cutting aluminum profiles, providing precise and clean cuts.

Can I use this miter saw for metal?
Absolutely! The Gotha is equipped to handle various non-ferrous metals, including aluminum, thanks to its high blade speed and advanced lubrication system.

Ready to Optimize Your Cutting Process?

The Gotha Single-Head Cutting-Off Machine combines precision, durability, and efficiency, making it an essential addition to any professional workshop or factory. Contact us today for pricing or to schedule a demo.
