End milling is a fundamental machining process that utilizes a rotating cutting tool, known as an end mill, to remove material from a workpiece. This versatile cutting tool can handle a variety of materials, including metals, plastics, woods, and composites, making it indispensable across all manufacturing sectors. The end milling process is employed for a wide range of tasks such as slotting, contouring, facing, and profiling workpieces. By precisely cutting and shaping materials, end milling ensures high-quality finishes and dimensional accuracy, which are critical in modern manufacturing.

The end milling process begins with the workpiece securely clamped onto the machine’s work table or fixture. The rotating end mill is then brought into contact with the workpiece’s surface, where its cutting edges engage the material. The machine’s spindle rotates at high speeds to minimize vibration and ensure clean cuts. As the work table moves the workpiece around the fixed cutting spindle, the cutting edges of the end mill remove material from the workpiece’s surface. The chips generated during this process are continuously evacuated from the cutting zone, either by the machine’s chip evacuation system or the motion of the end mill itself, ensuring a smooth and efficient milling operation.

• Power Supply: 400 V / 50 Hz, with a 2.5 kW motor.
• Cutting Capacity:
• Compressed Air Supply: Operates at 7 Bar with minimal air consumption

Choosing the right end mill for a project is crucial to achieving the desired outcome. Several factors must be considered, including the material to be milled, cutting diameter, flute count, coatings, and the appropriate cutting speed and feed rate. For instance, a ball end mill is ideal for milling contoured surfaces, providing a smooth finish, while a square end mill is better suited for general milling applications, offering versatility in cutting flat surfaces. The end mill’s flute count and coatings also play a significant role in cutting performance and finish quality. Matching the cutting speed and feed rate to the material being milled ensures optimal efficiency and prolongs the tool life.

• Cutter Holder and Milling Disc Kit: Optimize for specific machining parameters.
• Automatic Feeding System: Integrated potentiometer for precise control.
• UL-CSA Standards Setup: Tailored for USA and Canada compliance.
• Autotransformer: For compatibility with special voltages.
• Ocean Freight Packaging: Ensures safe and secure shipping worldwide.

End milling is a critical process in various industries, including manufacturing, aerospace, automotive, and medical devices. In the aerospace sector, it is used to produce essential components such as aircraft structural parts, engine components, and turbine blades. The automotive industry relies on end milling for manufacturing engine blocks, cylinder heads, and transmission components. In the medical field, end milling is employed to create surgical instruments, orthopedic implants, and other medical devices, ensuring precision and reliability in these critical applications.

• High Precision: Designed for high precision in CNC milling operations, ensuring dimensional accuracy and smooth finishes, even on harder materials like tungsten carbide.
• Versatility: Ideal for face milling, plunge cutting, and handling various materials.
• Enhanced Tool Life: Incorporates advanced features to maintain cutting teeth longevity and ensure consistent performance.
• Efficient Material Removal: Perfect for operations requiring fast chip removal and depth of cut adjustments.

Common milling problems such as excessive chatter, poor surface finish, and rapid wear of the end mill can hinder the efficiency of milling operations. To address these issues, it is essential to regularly inspect the tool’s cutting edges for wear and damage. Adjusting the cutting parameters, such as cutting speed and feed rate, can also improve performance. Using a tool with a more stable cutting geometry and higher rigidity can further enhance the milling process. Regular maintenance of both the milling machine and the end mill is crucial in preventing these problems and ensuring consistent, high-quality results in your machining operations.

What is the end milling process?

The end milling process involves using a rotating end mill to remove material and shape workpieces with precision. Ball end mills are particularly useful for achieving rounded cutting edges, allowing for the machining of complex 3D shapes and curved surfaces. It is ideal for achieving flat, contoured, or rounded cutting edges.

How does end milling differ from face milling?

While end milling focuses on vertical cuts and detailed shaping, utilizing tools like square end mills for general-purpose cutting and creating sharp edges and corners, face milling is better suited for horizontal, flat surface finishing.

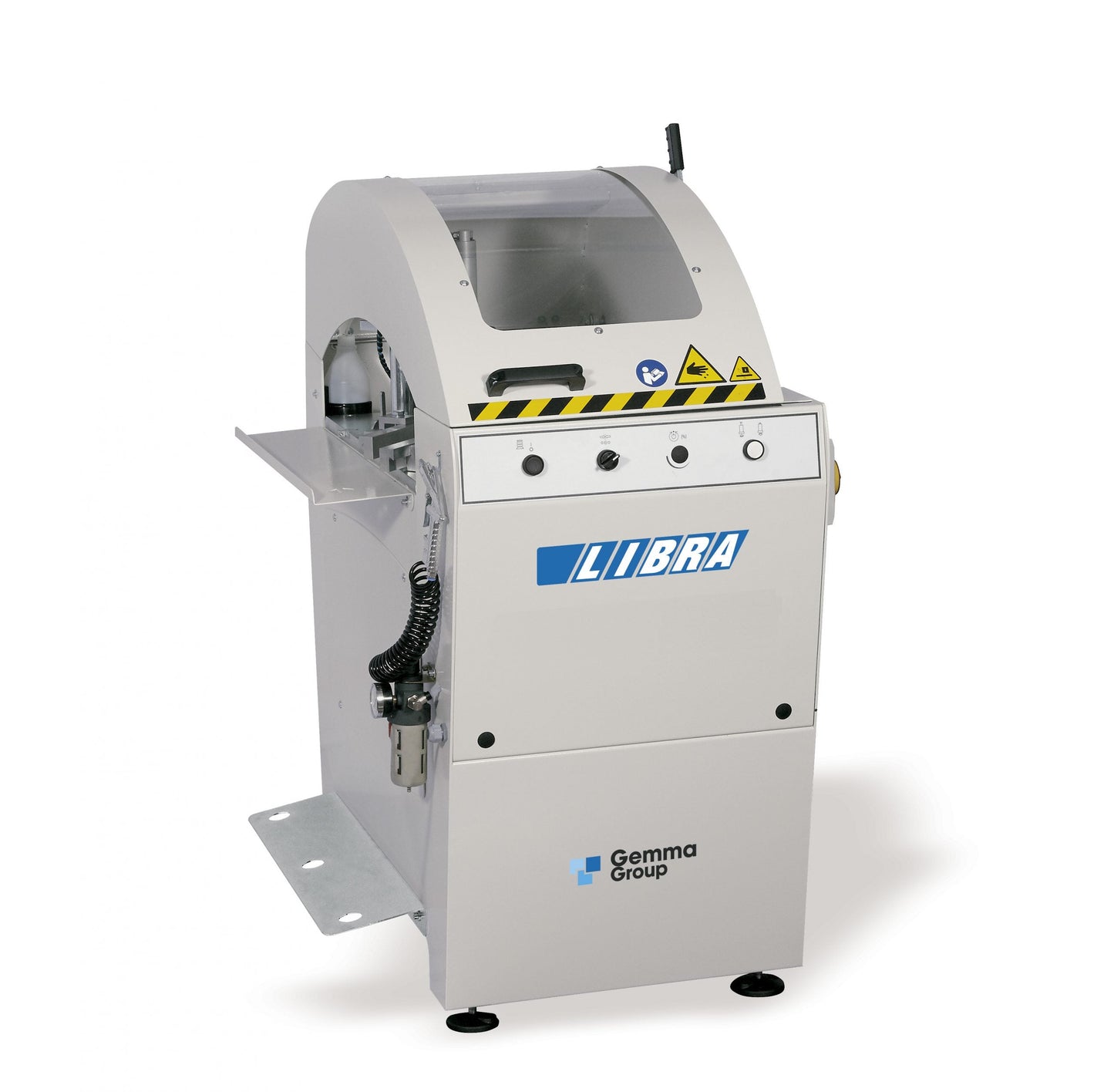

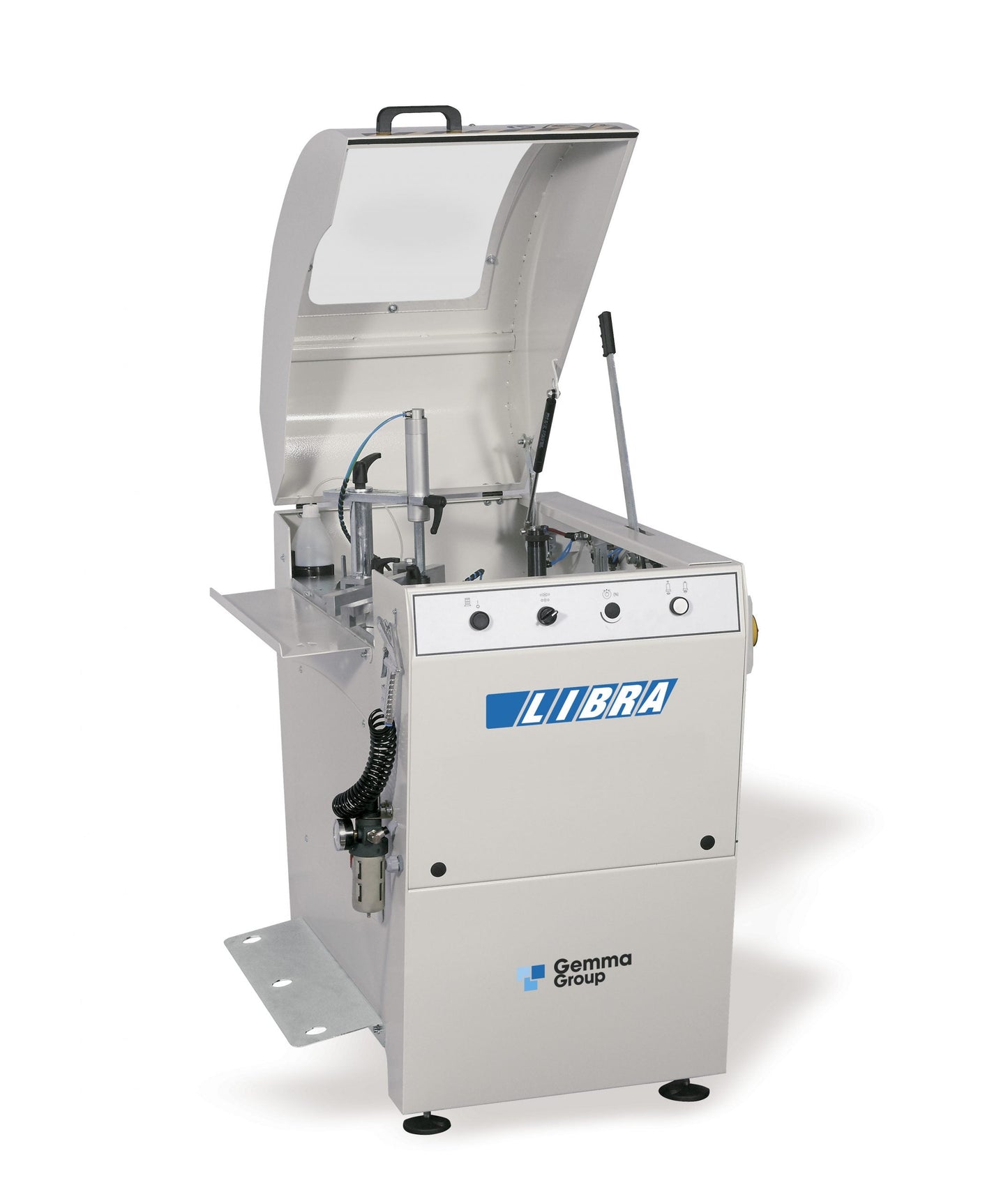

Contact Gemma Global today to learn more about the Libra End-Milling Machine. With a focus on precision, durability, and performance, the Libra is your partner for excellence in milling tools.
