The MOST Efficient Single Head Miter Saw for Aluminum Profiles

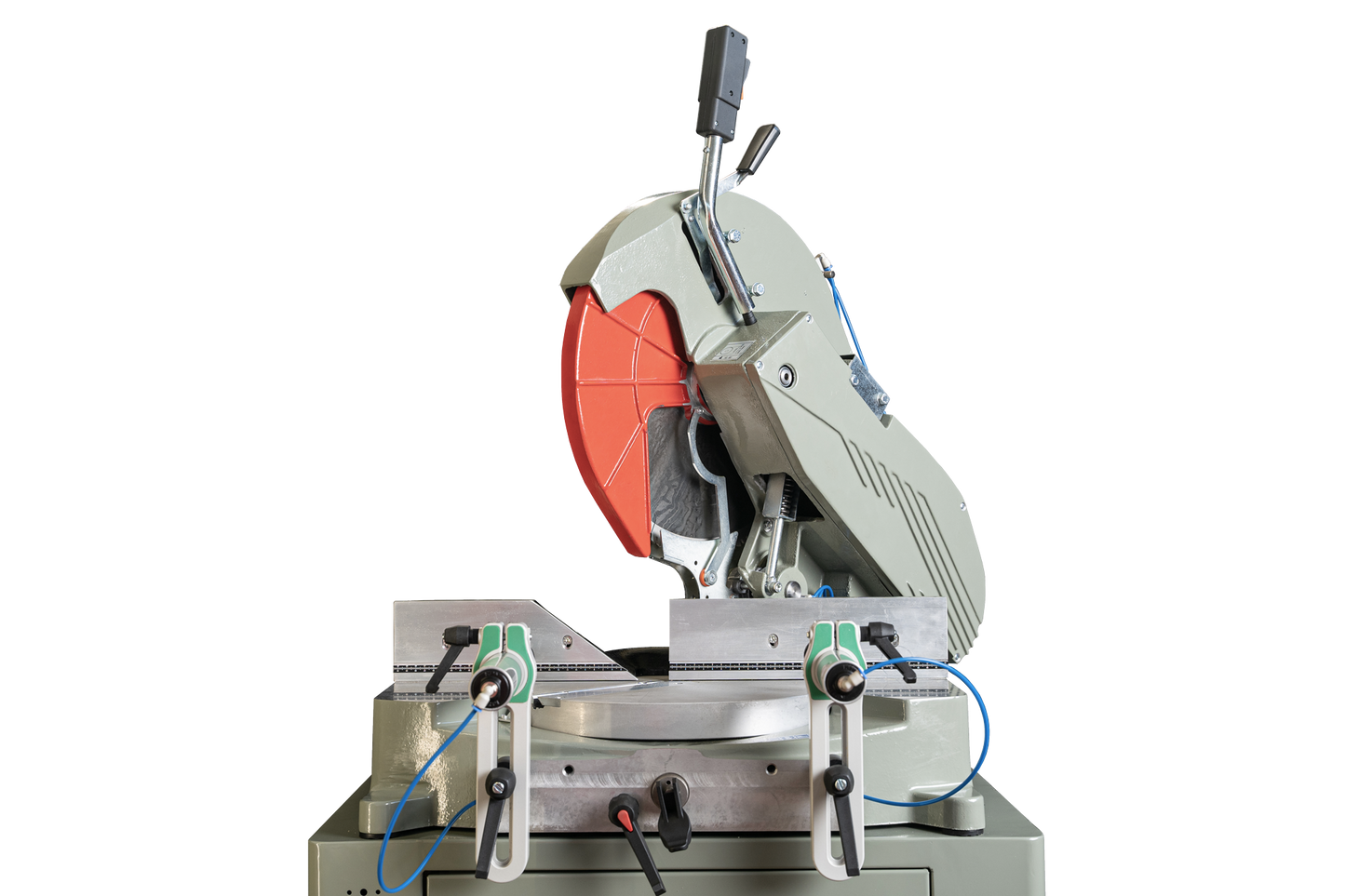

Manual single-head miter saw with descending blade. Base in electro-welded steel. Equipped with 2 horizontal pneumatic clamps. Cutting unit motor power 1,5 kW with widia blade diam. 400mm. Head tilt from 90° to 45° on the left side. Rotating worktop. Nebulized cutting lubrication (Venturi system). Sliding mobile square for trimming. The machine is equipped as standard with safety and protection devices in compliance with CE regulations.
Share







MOST Single-Head Cutting-Off Machine
Precision Cutting for Aluminum Profiles and More
The MOST single-head cutting-off machine is engineered to deliver high-precision cuts for aluminum profiles, aluminum extrusions, and other non-ferrous materials. The machine allows for precise adjustments to the cutting angle, ensuring accurate cuts for various applications. Equipped with a Ø 400 mm downstroke blade, this industrial-grade machine ensures accuracy, efficiency, and safety in every operation.
Key Features of the MOST
1. Advanced Cutting Technology

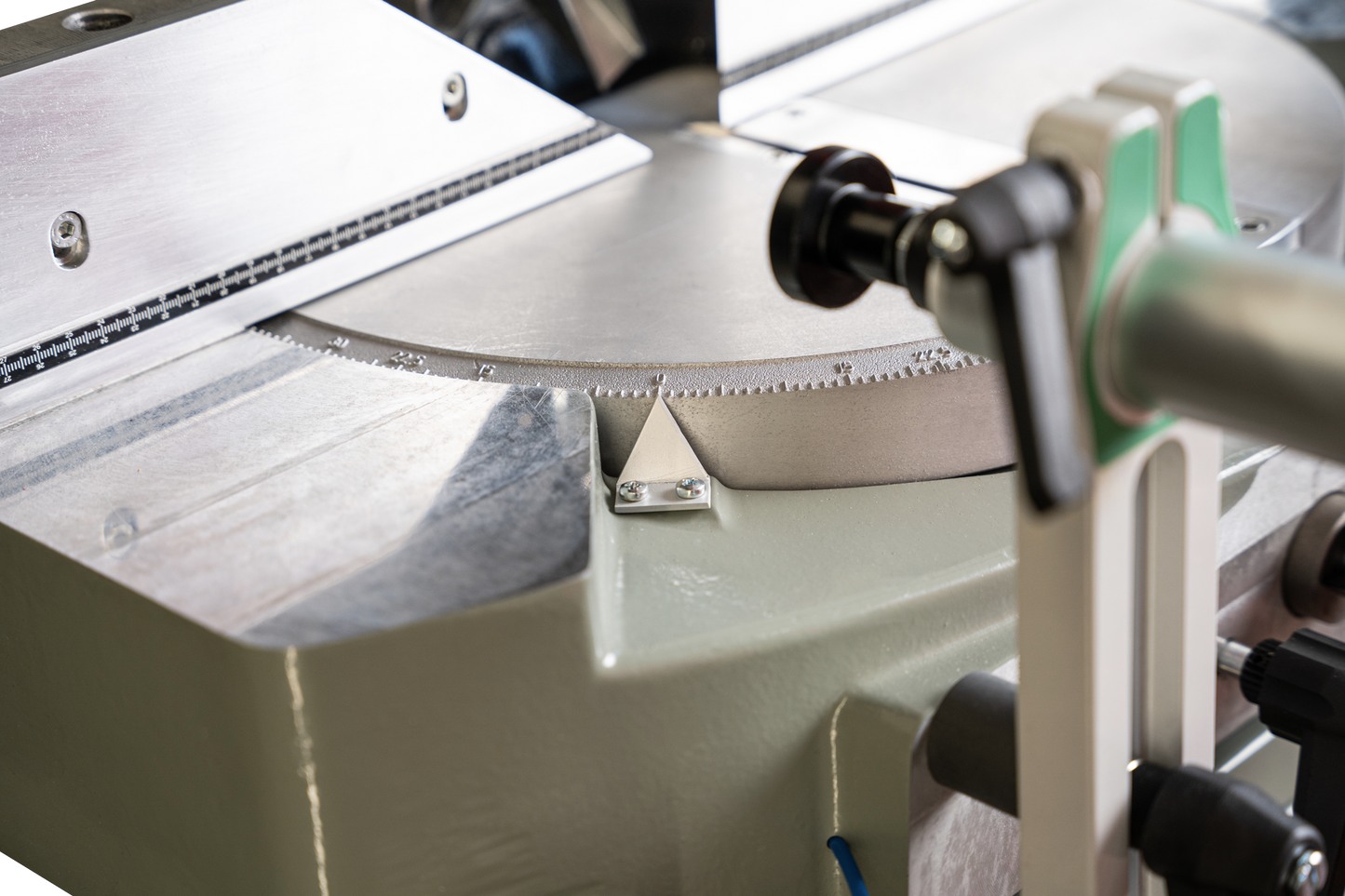

- Miter Saw Capabilities: Achieve precise cutting angles with a pivoting worktable supporting adjustments from +45° to -45°, along with mechanical stops for common angles like 22.5°, 45°, 90°, 135°, and 157.5°.

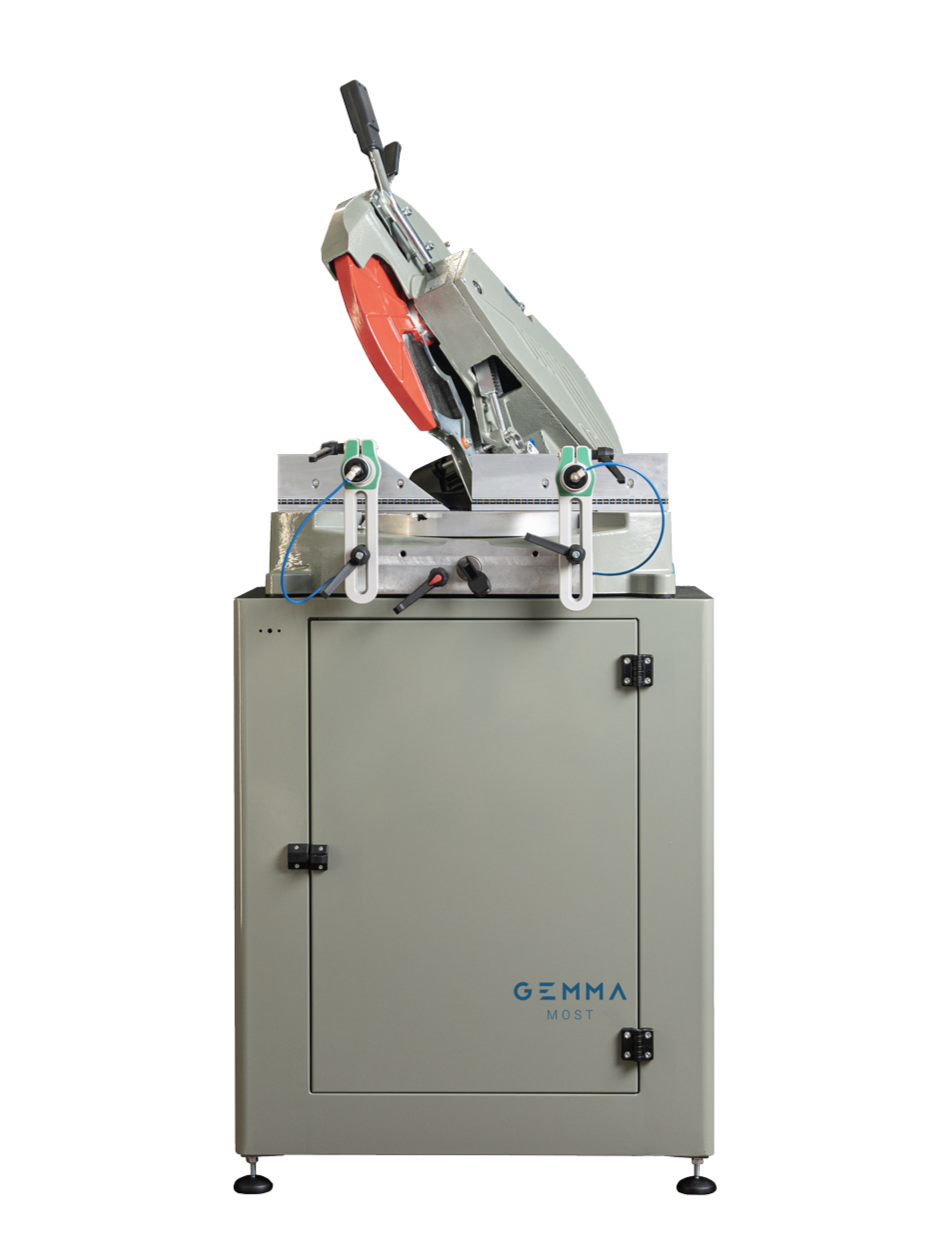

- Tilting Head: The saw head tilts up to 45° to the left, providing flexibility for complex cuts.

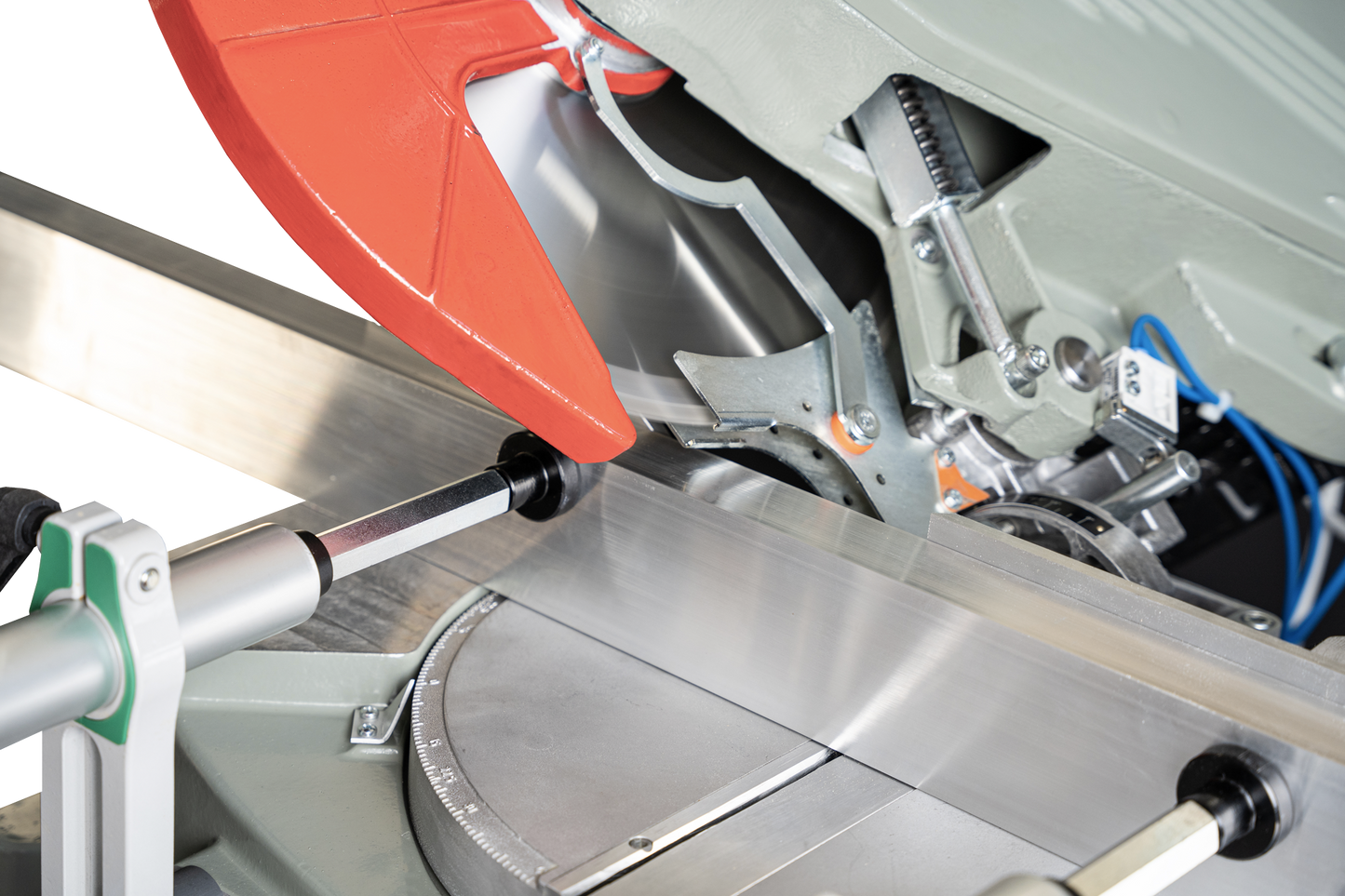

- Widia Blade: The Ø 400 mm widia blade, with a diameter of 400 mm, ensures clean and precise cuts for various aluminum profiles.
2. Robust Design for Industrial Use
- Electro-Welded Steel Base: Provides a stable, vibration-free platform for reliable operation.

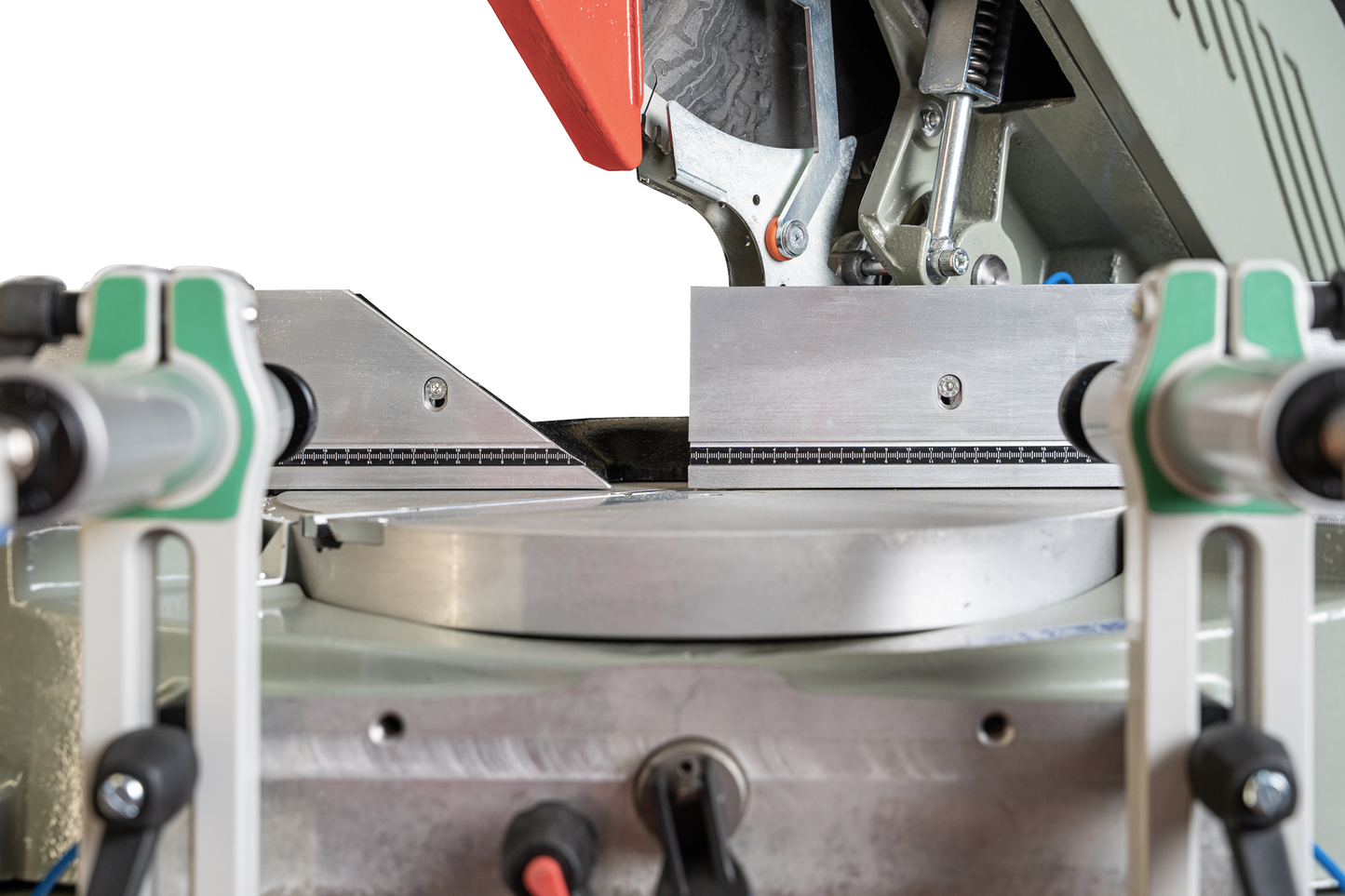

- Horizontal Pneumatic Clamps: Secure materials firmly, minimizing movement during cutting.
- Depth-Adjustable Back Stop: Ensures consistent results for repeated cuts, guided by linear tracks.
3. Safety and Compliance
- CE-Certified Safety Protections: The cutting area features built-in safety guards, ensuring operator protection during every use.
- Manual Blade Output Management: Guarantees full control over the blade’s movement for added safety.
4. Operator-Friendly Features
- Compact Design: With dimensions of 940x650x1,750 mm and a weight of 175 kg, the machine is easy to integrate into any factory layout.
- Venturi Lubrication System: Reduces blade wear and enhances cutting performance.
- Sliding Square: Ideal for carrying out accurate trimmings with ease.
5. Efficient Power Supply
- Motor Power: 1.5 kW motor running at 2,850 rpm delivers efficient performance.
- Air Consumption: Requires 7 Nl per cycle, ensuring economical operation with compressed air at 7 bar.
Cutting Capacities
At 90°: Handles aluminum profiles and other materials up to 80x80 mm or 200x80 mm.
At 45°: Cuts materials up to 80x80 mm or 143x80 mm.
Optional Features
- Vertical Pneumatic Clamp: Additional clamping option for enhanced material stability.
- Spare Blade: Additional Ø 400 mm widia blade for extended machine uptime and consistent cutting performance.
- USA-CANADA Setup: Compliance with UL-CSA standards.
- Autotransformer: Custom voltage configurations for international use.
Why Choose MOST?
The MOST single-head cutting-off machine, a high-precision mitre saw, combines precision, safety, and ease of use, making it the perfect solution for professionals handling aluminum profiles and extrusions. Its compact yet durable design ensures it fits seamlessly into any industrial environment, delivering unmatched reliability and performance.
Need a Diamond Saw Blade?
If you’re considering using the MOST single-head cutting-off machine with a diamond saw blade for tougher materials, contact us to confirm compatibility and get expert advice on the best setup for your specific needs. We're here to help!
