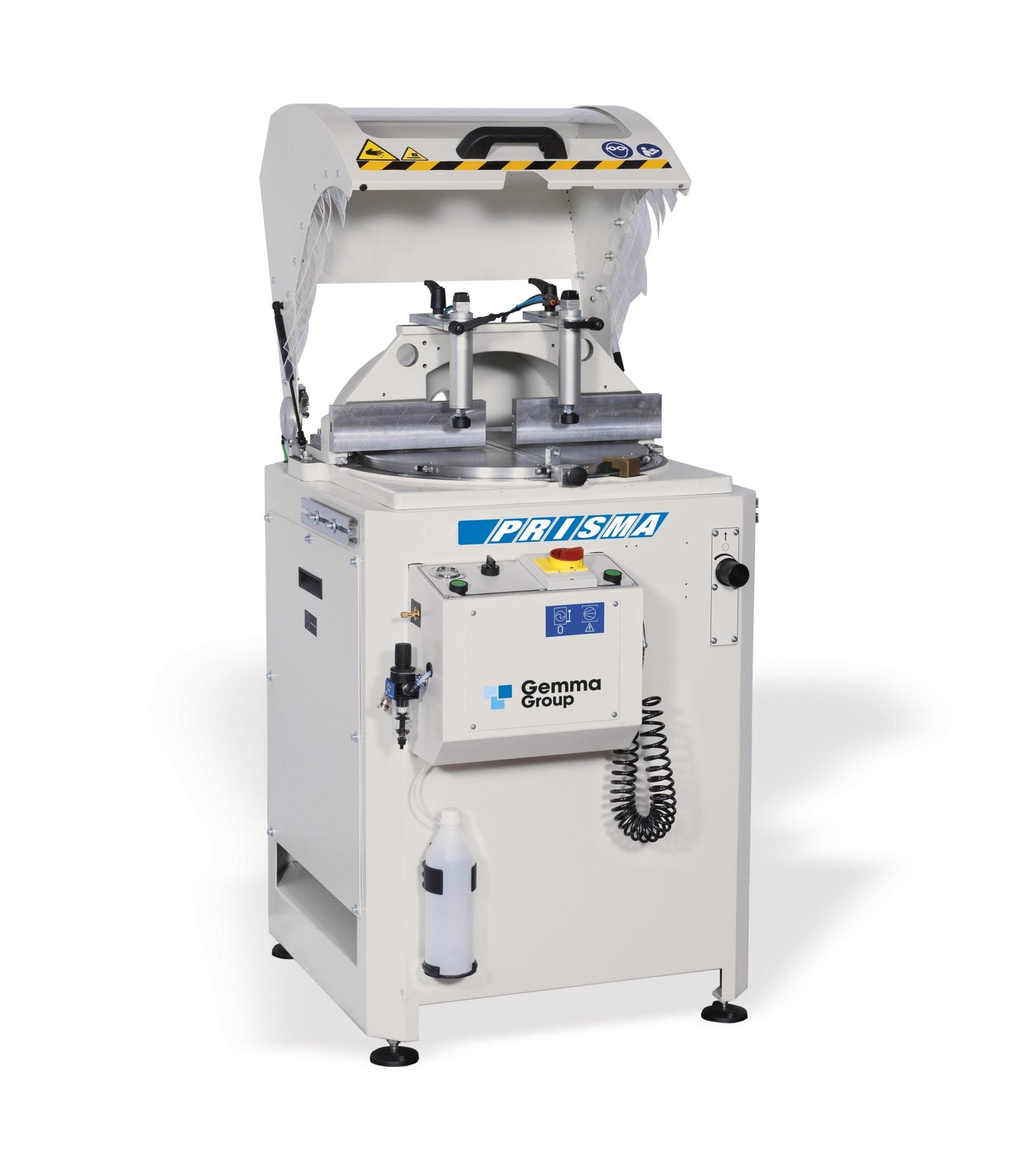

• Side view of the PRISMA cutting-off machine with integrated safety features and compact design.

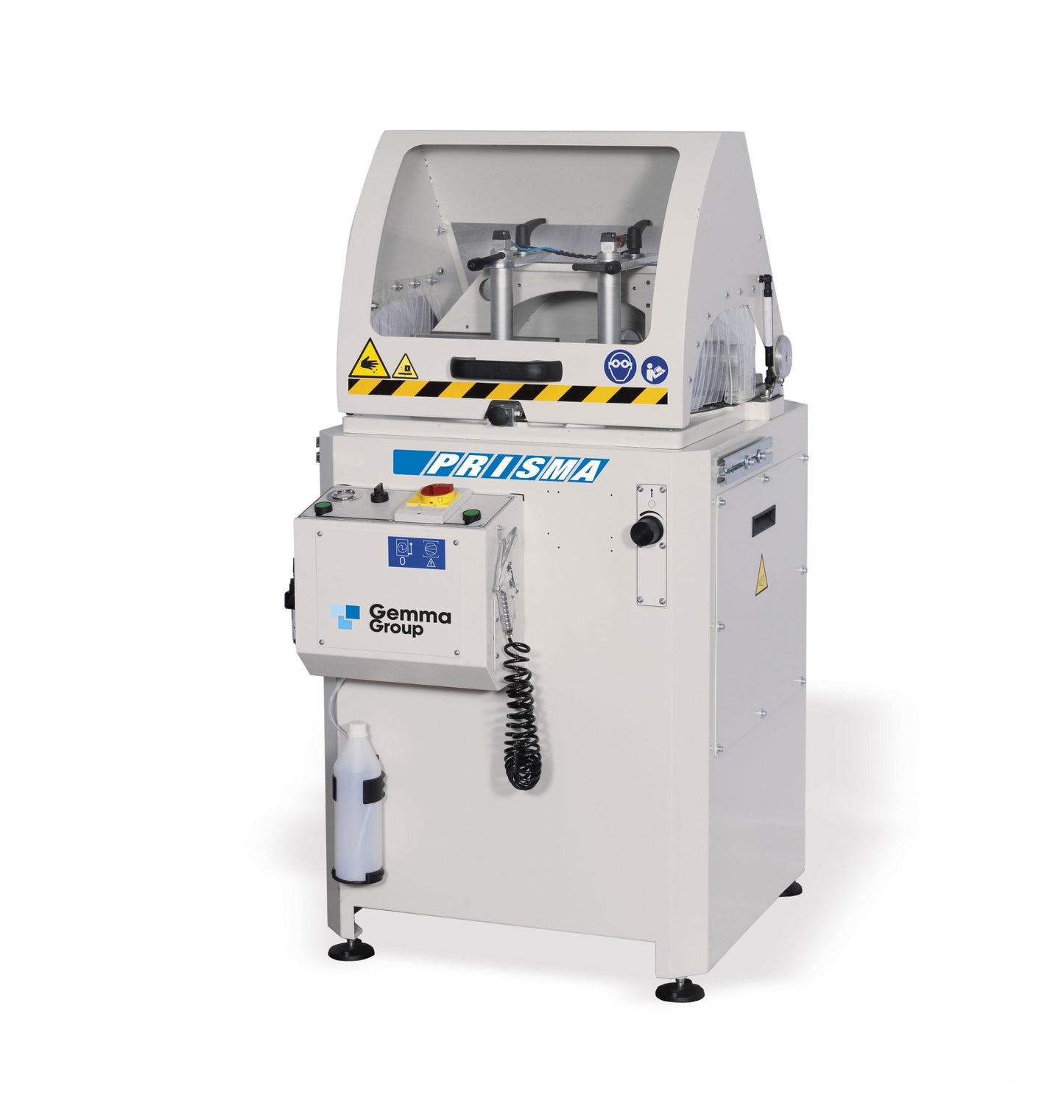

  • Full safety hood of the PRISMA cutting-off machine, designed for operator protection during cutting operations.

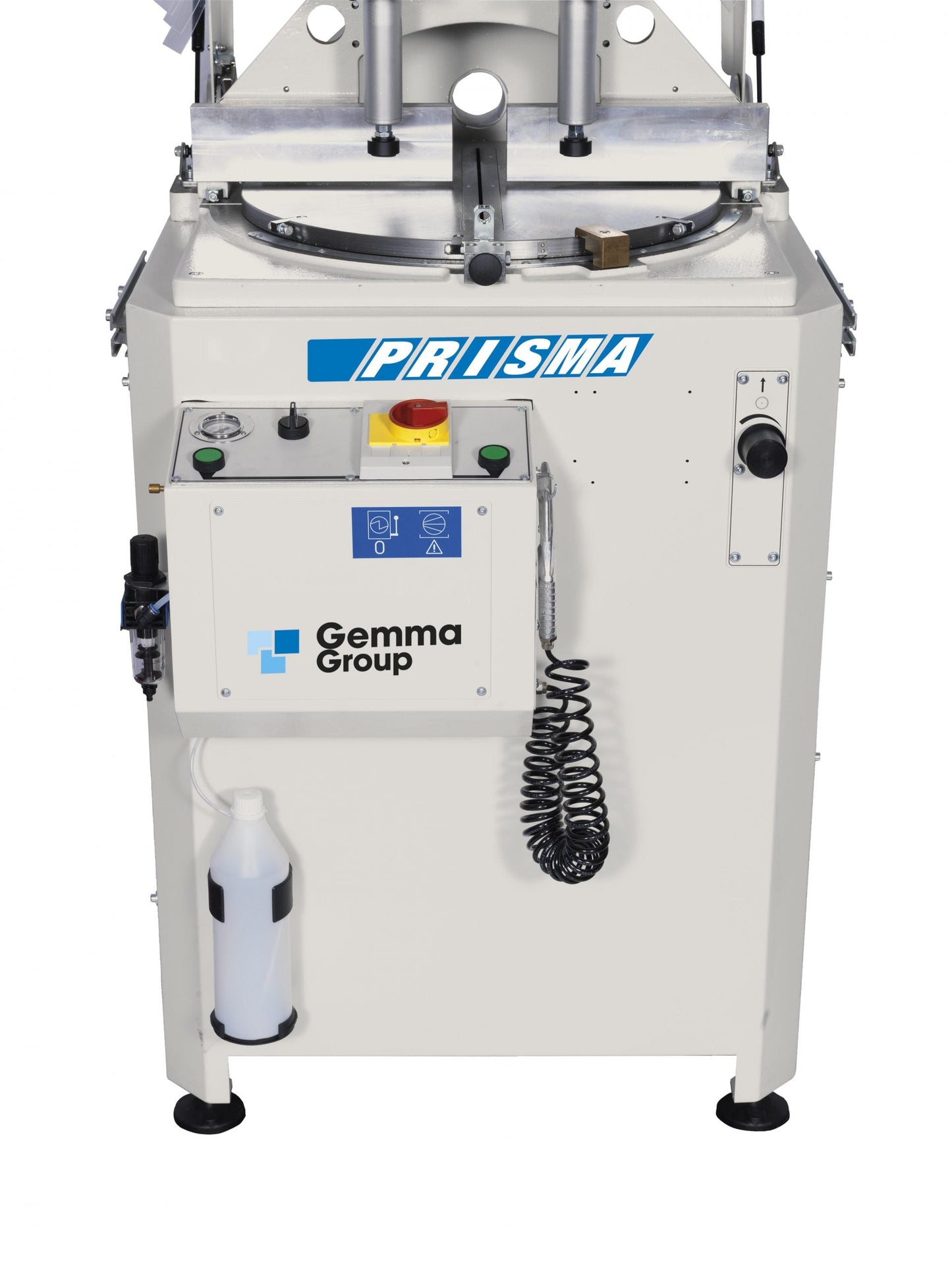

  • Front view of PRISMA single-head cutting-off machine with intuitive control panel and safety features.

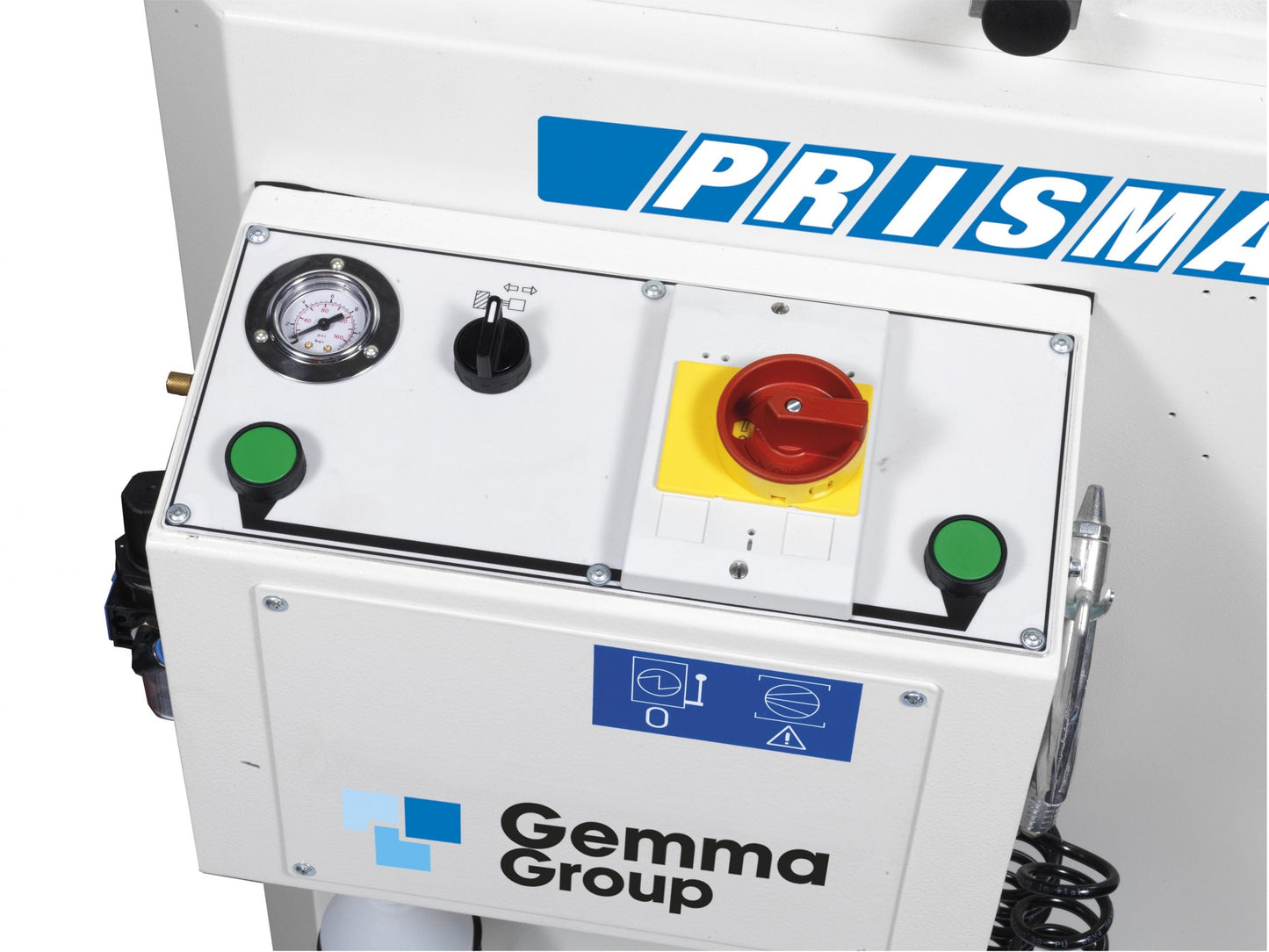

  • Close-up of PRISMA cutting-off machine's control panel with emergency stop button and pneumatic pressure gauge.

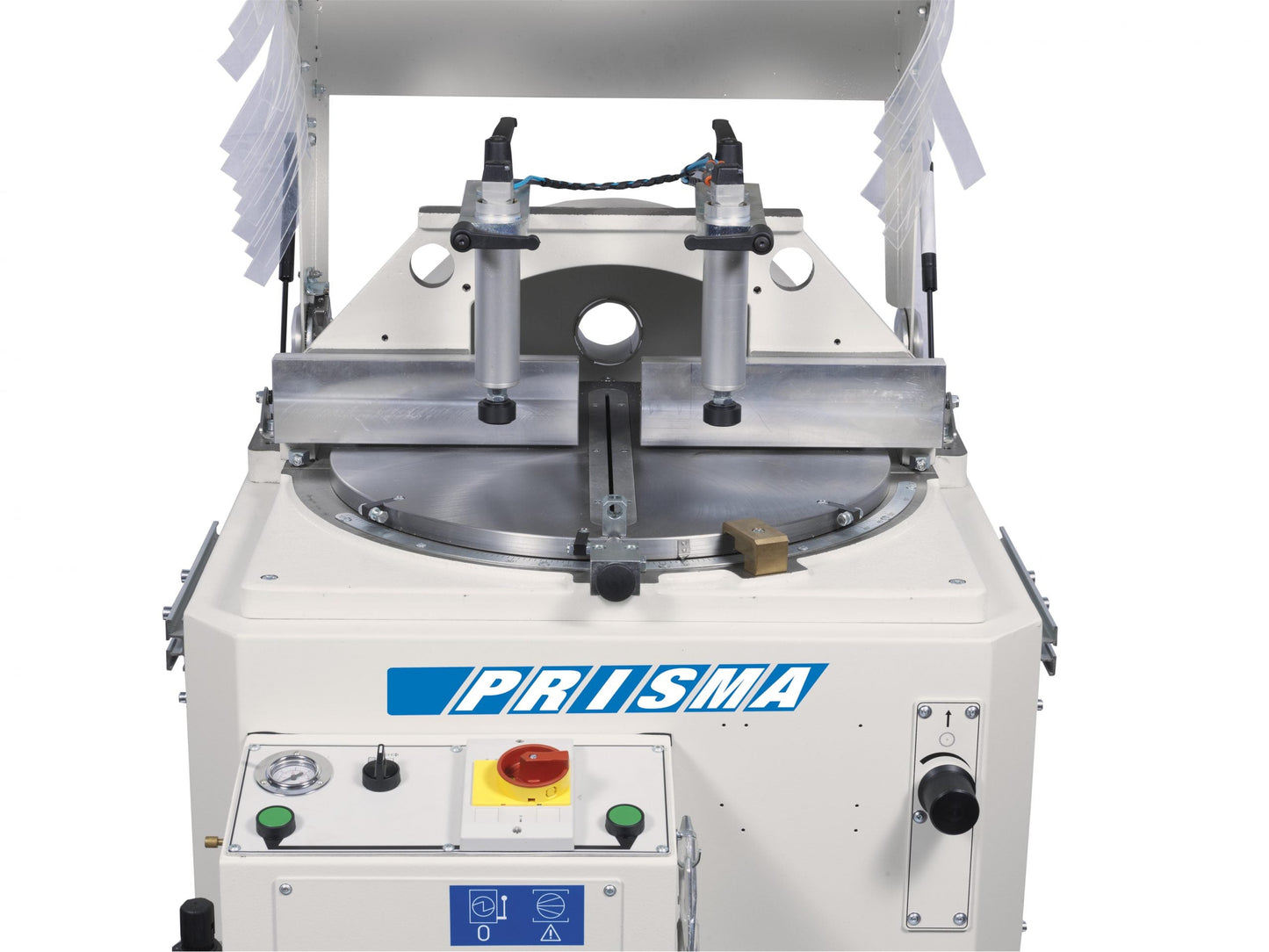

  • PRISMA cutting-off machine's cutting unit with vertical pneumatic clamps and a fully enclosed safety hood.

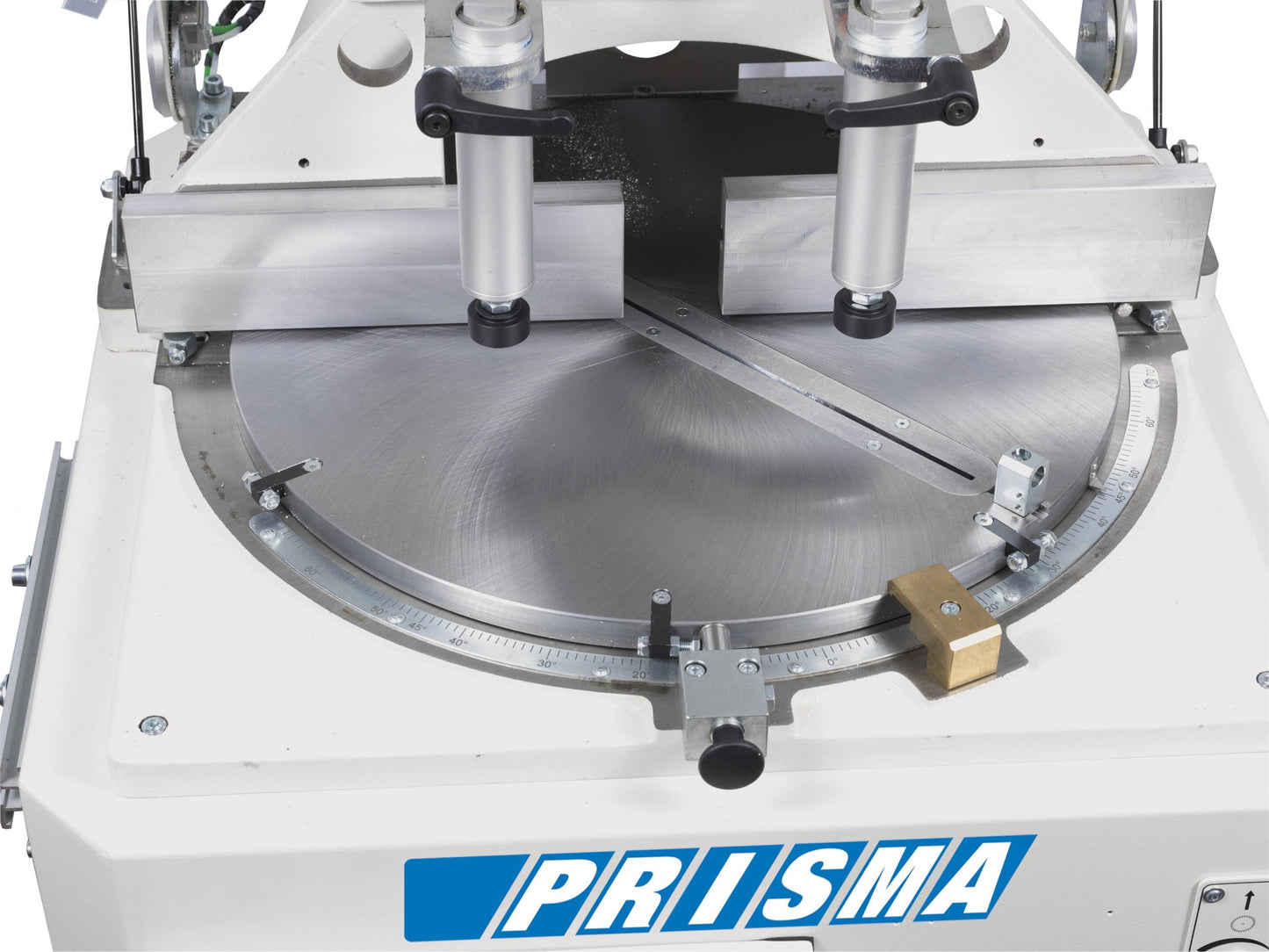

  • Cutting area of PRISMA machine showcasing the 450 mm widia saw blade and safety enclosure.

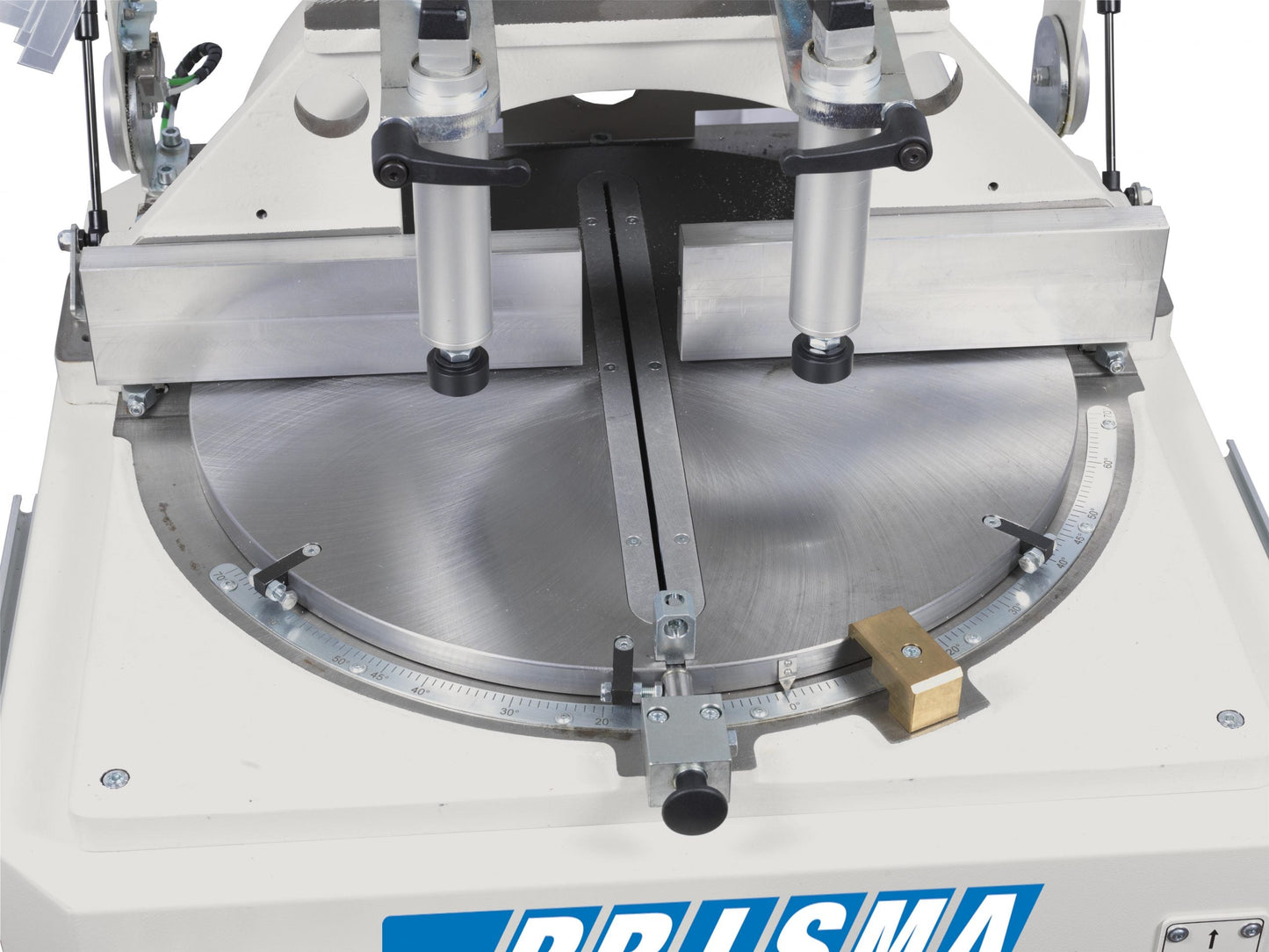

  • PRISMA cutting-off machine's rotating table with precise angle adjustments for straight and miter cuts.

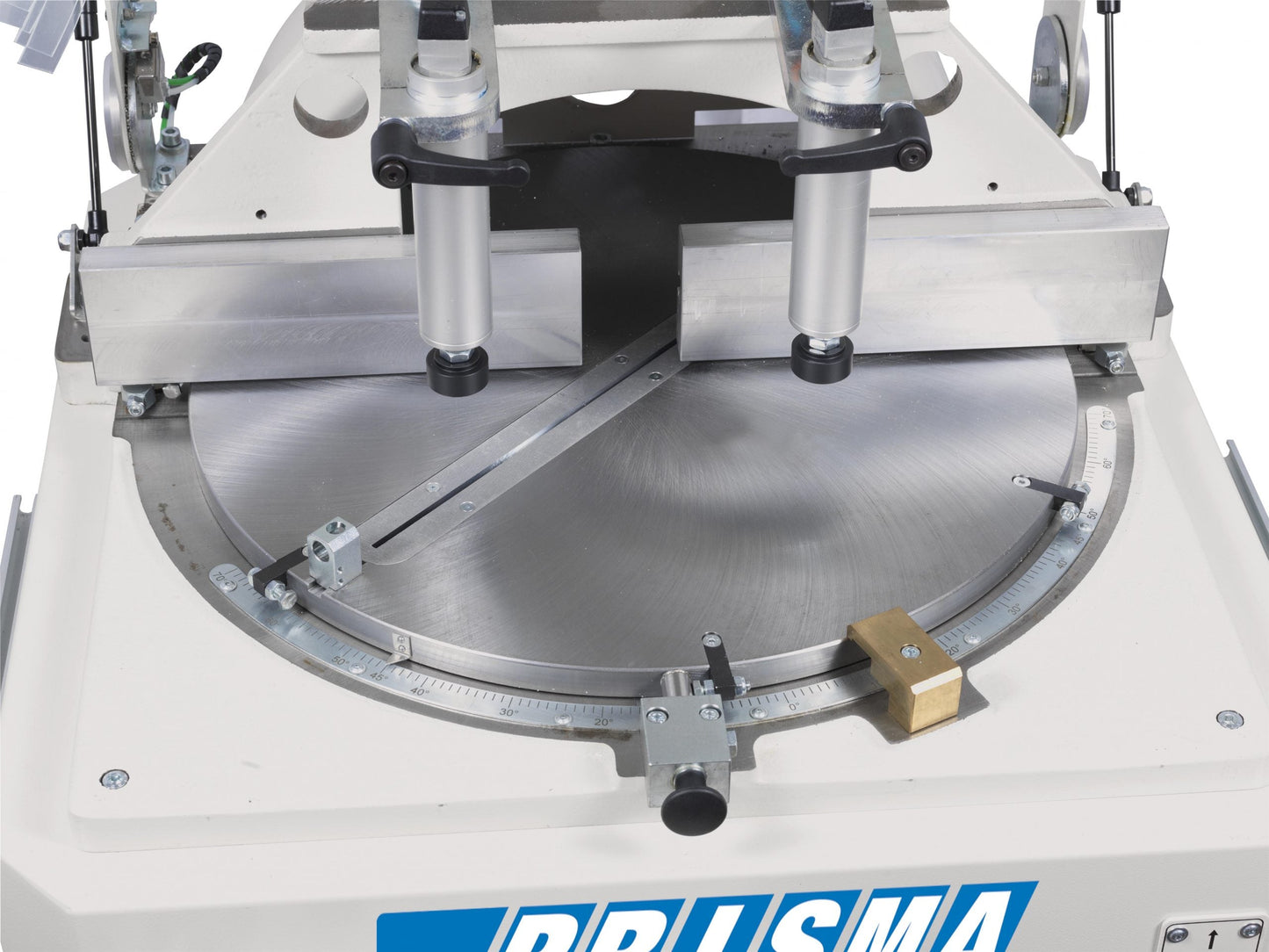

  • Detailed view of PRISMA's rotating worktable with adjustable cutting angles from 10 to 170 degrees.
1 8

Gemma

PRISMA

PRISMA

$18,733.00 CAD
$18,733.00 CAD
Sale Sold out

PRISMA: Industrial Aluminum Cutting Saw with Pneumatic Clamps

Single head miter saw with ascending blade, designed for aluminum upcut operations. The machine has an electro-welded steel base. There are 2 vertical pneumatic clamps as standard. Cutting unit motor power 2,2 kW with widia blade diam. 450mm. Mechanical stops for quick selection of 45°/90°/135° angles. The angle cuts from 10° to 170°. Nebulised cutting lubrication (Venturi system).

Sliding mobile square for trimming. The machine is equipped as standard with safety and protection devices in compliance with CE regulations.

Download Product details PDF

View full details

PRISMA Single-Head Cutting-Off Machine

Optimize Your Aluminum and Non-Ferrous Metal Cutting Process with PRISMA

The PRISMA single-head cutting-off machine is a high-performance solution designed for precision, efficiency, and safety in industrial aluminum cutting. Featuring a robust electro-welded steel structure and advanced safety mechanisms, PRISMA delivers unparalleled reliability for cutting aluminum profiles, non-ferrous metals, and plastics.

Key Features of the PRISMA

1. Precision Engineering for Superior Saw Blade Cuts

  • Upcut Blade Mechanism: Equipped with a Ø 450 mm widia saw blade, PRISMA ensures straight cuts with exceptional accuracy.
  • Adjustable Angles: Easily pivot the worktable to achieve cutting angles between 10° and 170° with intermediate stops for flexibility.
  • Mechanical Stops: Quick-selection stops at 45°, 90°, and 135° angles streamline workflow and enhance cutting precision.
  • Hydro-Pneumatic System: The hydro-pneumatic cylinders facilitate the precise raising of the blade and aid in the feeding mechanism, enhancing the accuracy and safety of the cutting process.

2. Safety and Compliance

  • Fully Enclosed Cutting Area: PRISMA’s safety guard offers complete protection during operation, meeting CE safety regulations.
  • Two-Button Activation: The operator must engage two buttons simultaneously, ensuring optimal safety during use.
  • IP55 Electrical Protection: Built to withstand challenging industrial environments, the PRISMA machine ensures reliable performance.
  • Safety Switch: The PRISMA upcut saw includes a safety switch that ensures cutting operations only commence when all safety measures are fully engaged, enhancing operator safety.
  • Top Guard: The top guard on the PRISMA upcut saw includes a safety switch that prevents the saw from operating until the guard is securely closed, ensuring a safe cutting operation.

3. High Performance and Versatility

Cutting Capacity:

  • 90°: Handles materials up to 125x125 mm and 230x50 mm.
  • 45°: Cuts up to 95x95 mm and 130x45 mm.
  • Motor Power: A 2.2 kW motor with a blade speed of 2,800 rpm ensures smooth, efficient cutting with high performance saws.
  • Venturi Lubrication System: Reduces wear on the blade and enhances cutting performance.

4. Operator-Friendly Features

  • Control Panel: Intuitive controls allow for easy operation, minimizing downtime and training requirements.
  • Sliding Square for Trimming: Ideal for detailed work, ensuring clean, precise results every time.
  • Oleopneumatic Blade Movement: Delivers smooth, controlled cutting motions, enhancing operator safety and productivity.
  • Increased Visibility: A lighted cabin enhances the user's ability to see and navigate while cutting aluminum profiles, ensuring precision and safety.

5. Built for Durability and Efficiency

Electro-Welded Steel Base: A stable, vibration-free platform for consistent performance and enhanced durability and efficiency with an upcut saw.

Horizontal and Vertical Clamps: Secure materials firmly in place for added stability.

Compact Design: With dimensions of 750x1,000x1,600 mm and a manageable weight of 245 kg, PRISMA is easy to integrate into any workspace.

Optional Features

  • Laser Cutting Line: Enhance accuracy with a laser device for precise cutting line visualization.
  • USA-CANADA Setup: Certified configurations compliant with UL-CSA standards.
  • Autotransformer: Custom power setups for international use.

Why Choose the PRISMA?

PRISMA isn’t just a cutting machine—it’s an investment in quality, safety, and efficiency. Perfect for cutting aluminum profiles, PVC, and non-ferrous metals, PRISMA’s advanced features and robust design make it the ultimate choice for industrial applications.

Upgrade your cutting operations with the PRISMA single-head cutting-off machine. With its exceptional cutting capacity, innovative safety features, and user-friendly design, PRISMA is engineered to exceed expectations.
