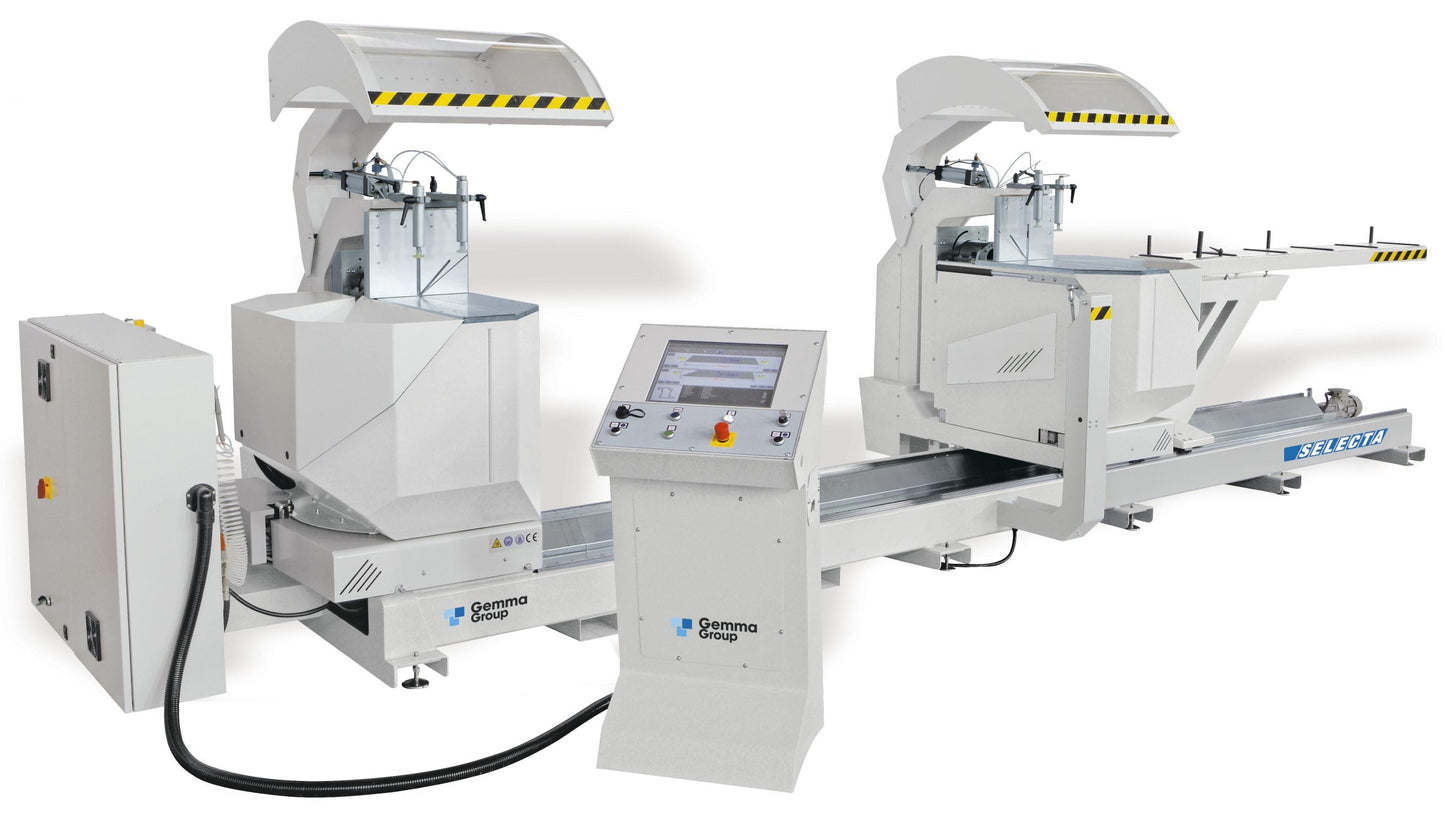

  • The Selecta A machine cutting aluminum profiles, demonstrating its pneumatic control and precise blade alignment.

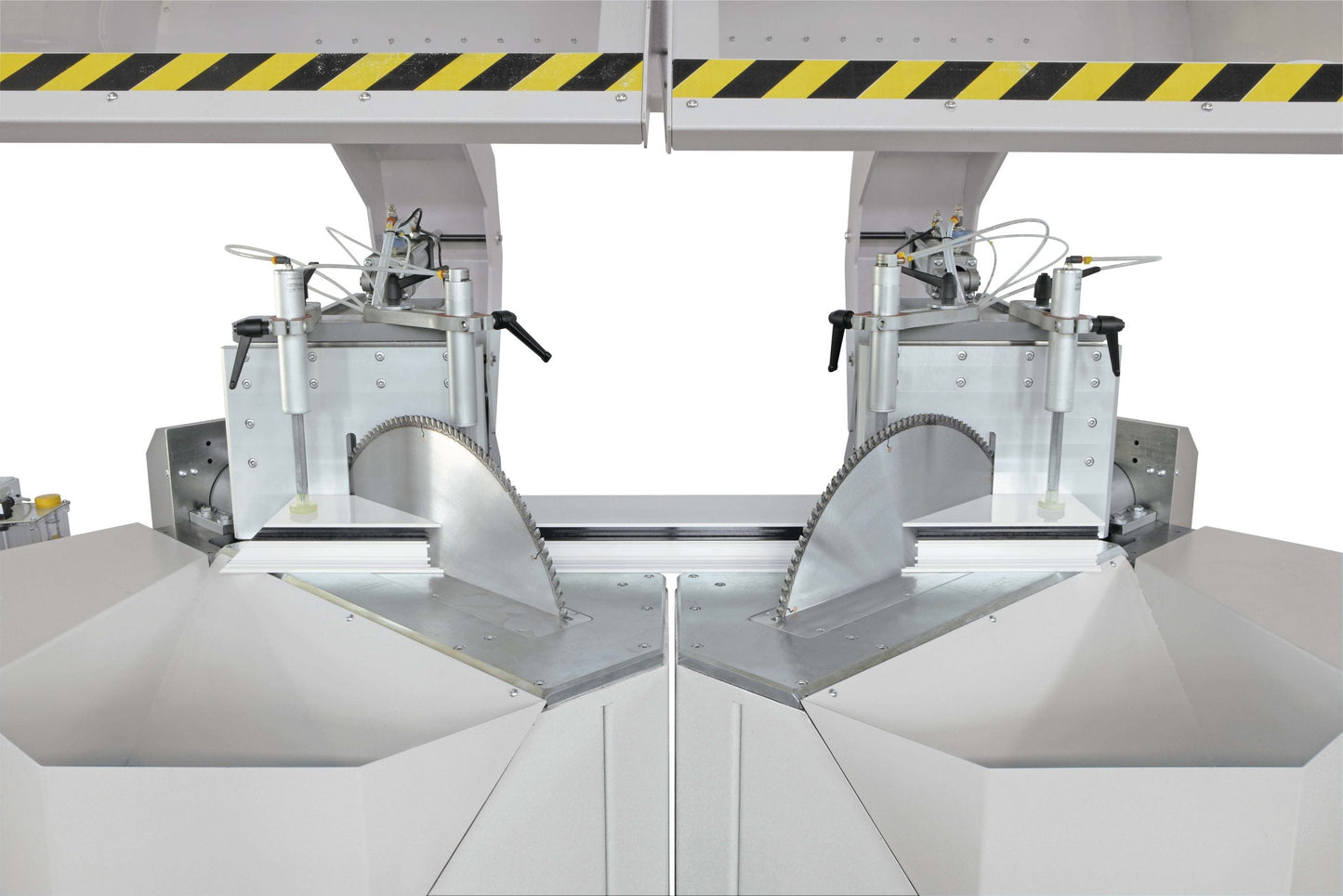

  • Front view of the Selecta A double-head cutting-off machine for aluminum and PVC profiles, showcasing precision-engineered blades and robust structure.

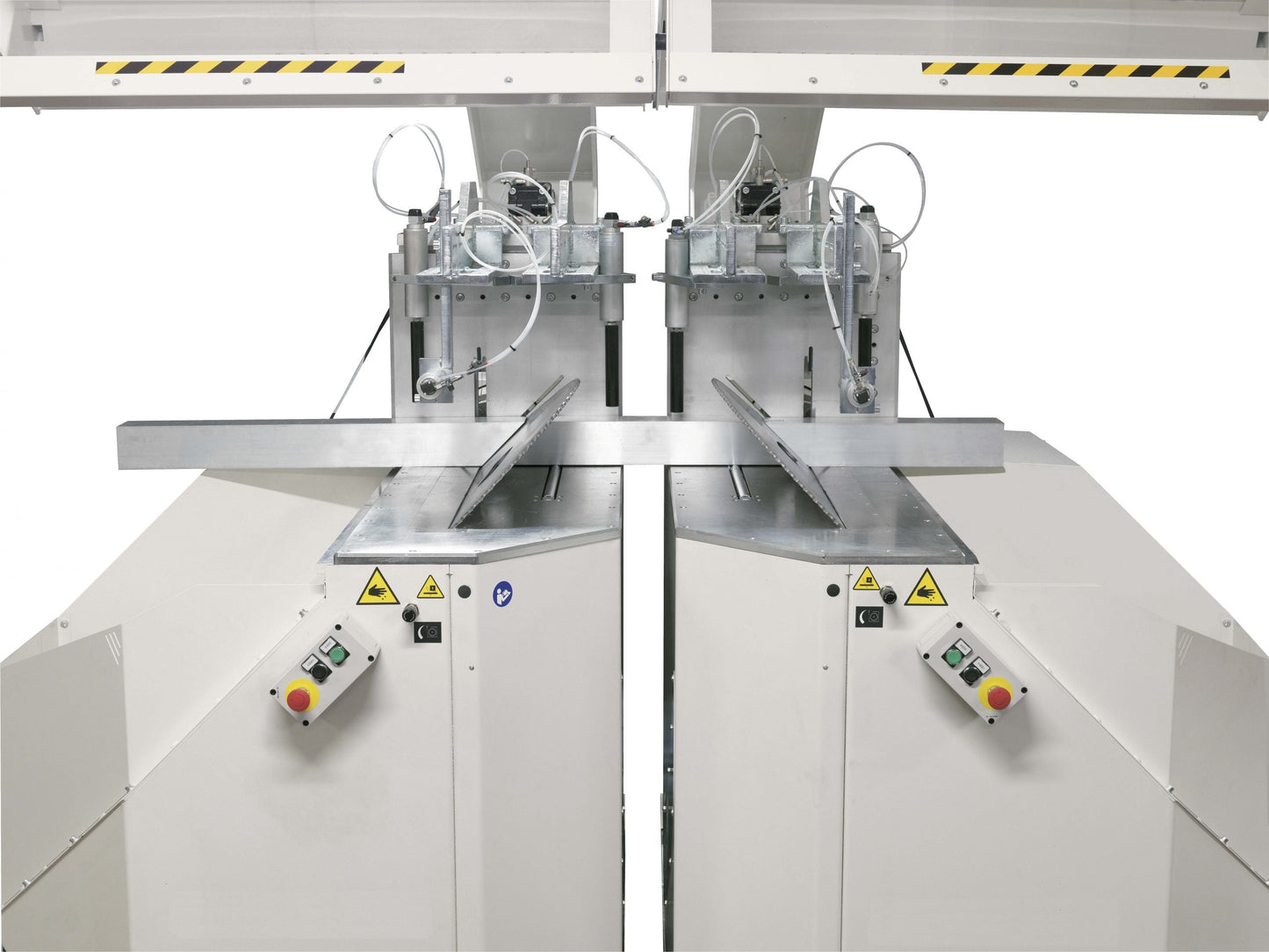

  • Close-up of the cutting blades on the Selecta A double-head miter saw, featuring high-precision widia blades for aluminum and PVC profiles.

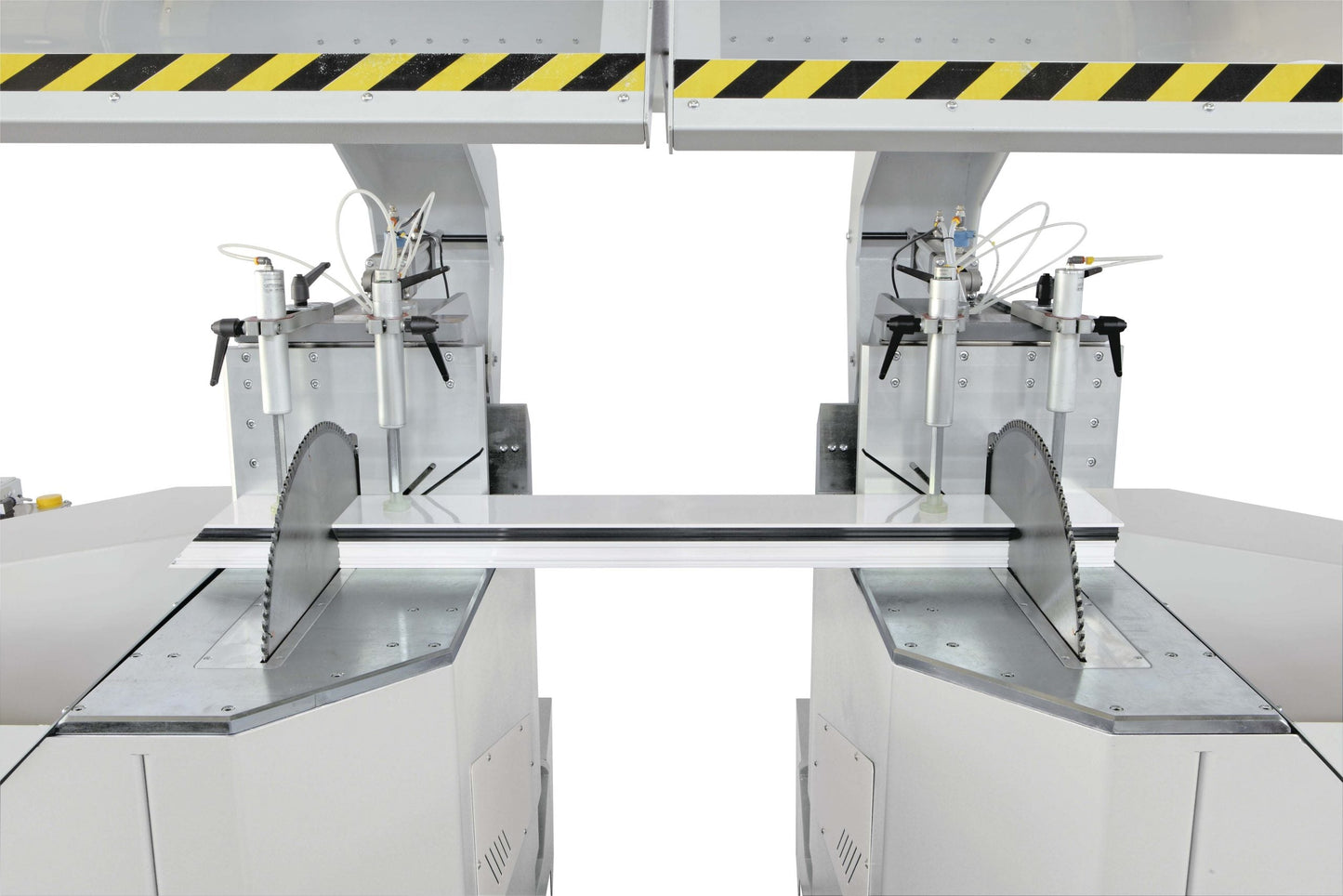

  • Side view of the Selecta A double-head cutting-off machine, highlighting its industrial-grade steel frame and advanced cutting technology.

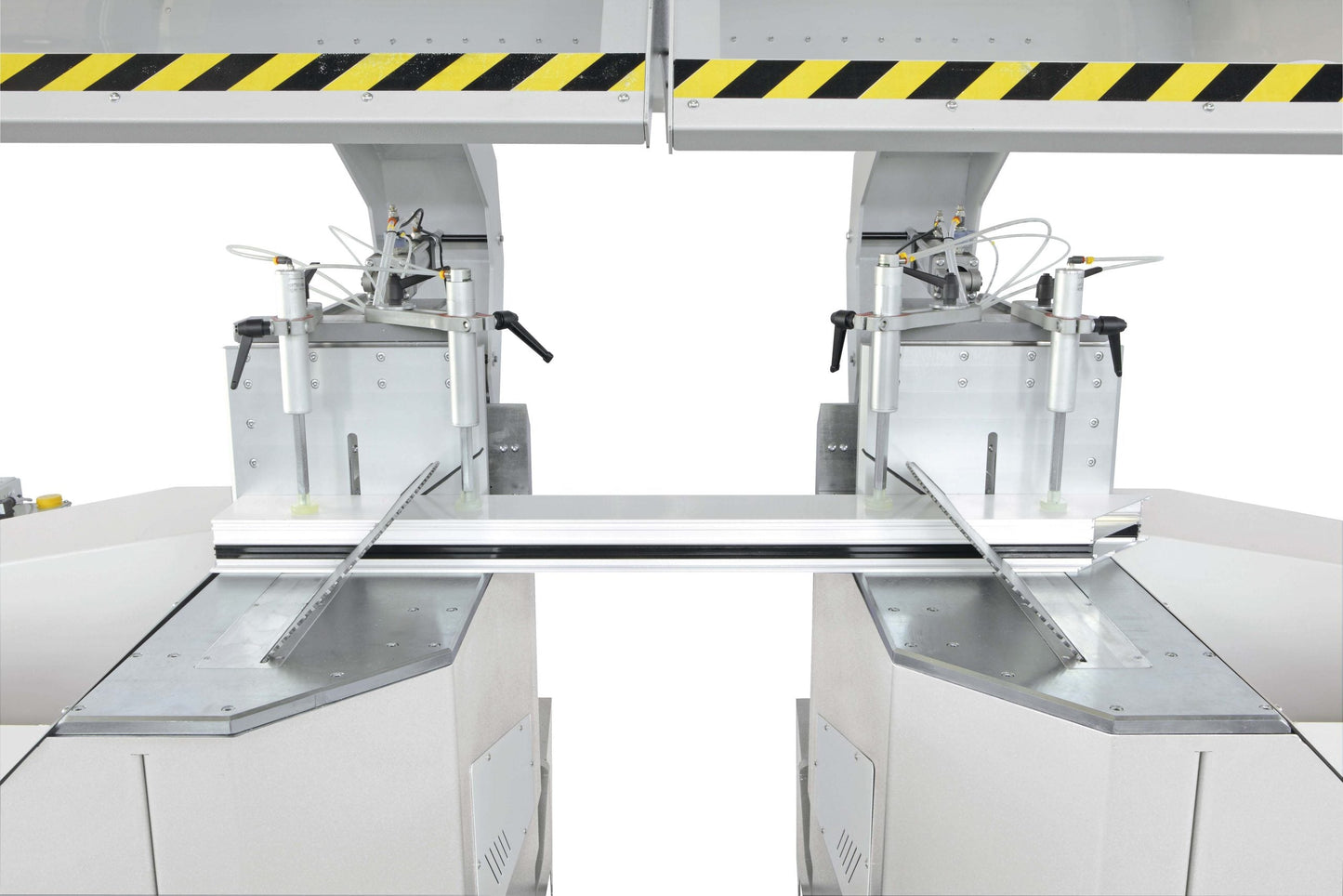

  • The Selecta A cutting-off machine executing compound angle cuts with precision on aluminum profiles.

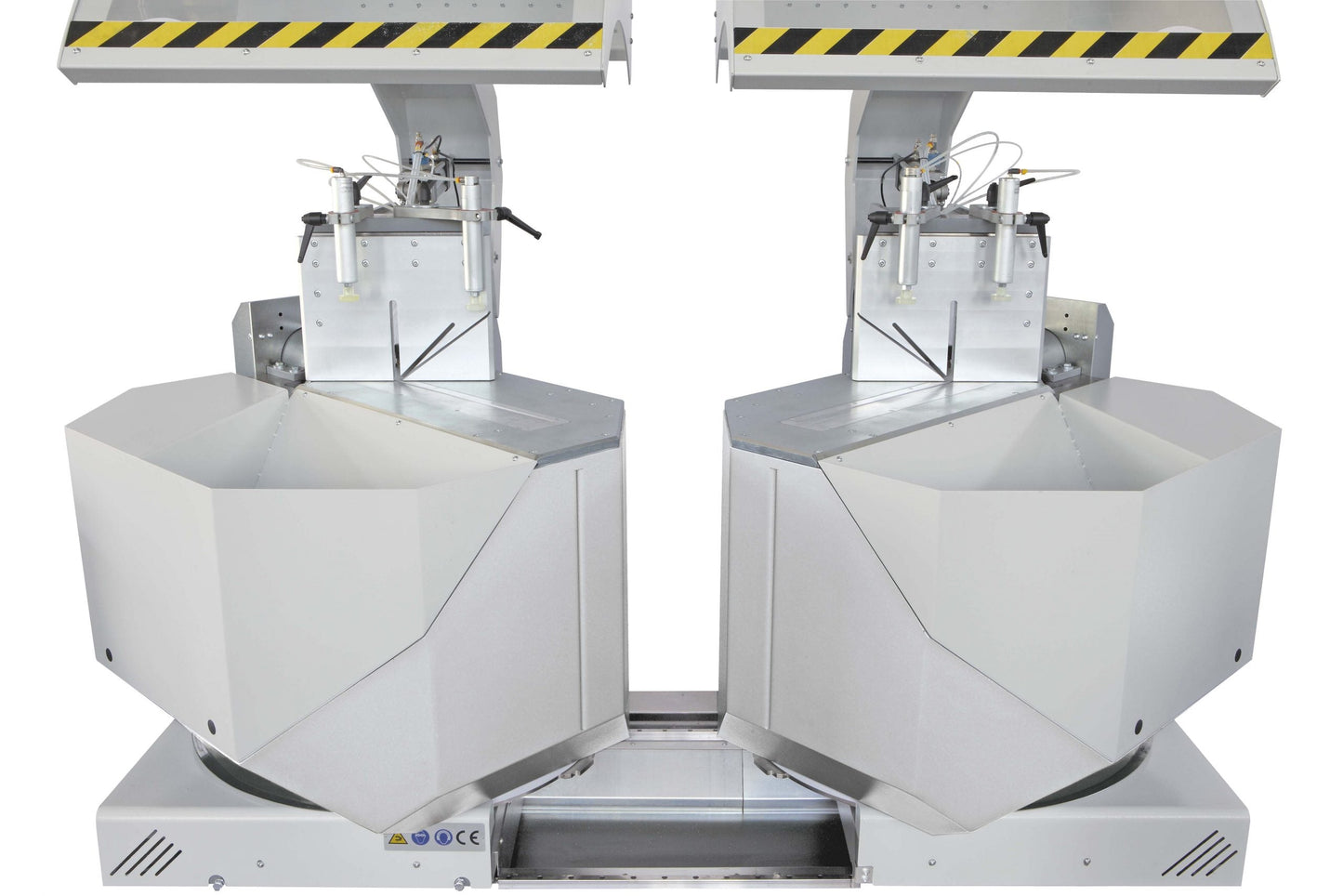

  • Detailed view of the blade alignment on the Selecta A cutting machine, emphasizing its precision engineering for complex cuts.

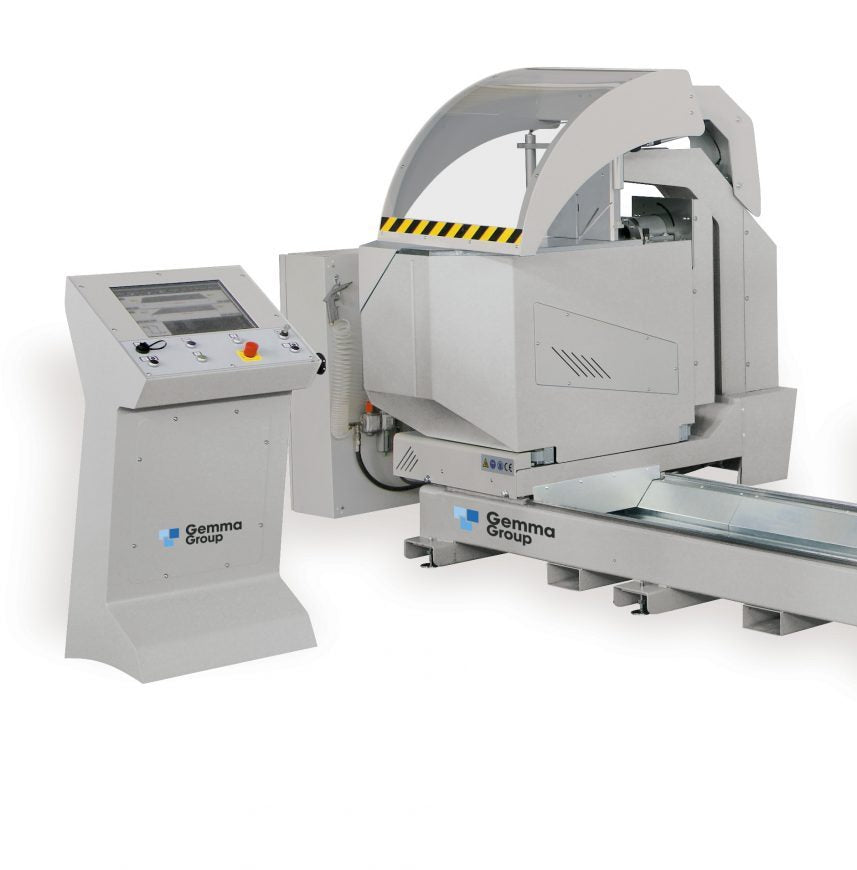

  • The Selecta P double-head cutting machine during operation, showcasing its robust performance in cutting compound angles on aluminum extrusions.

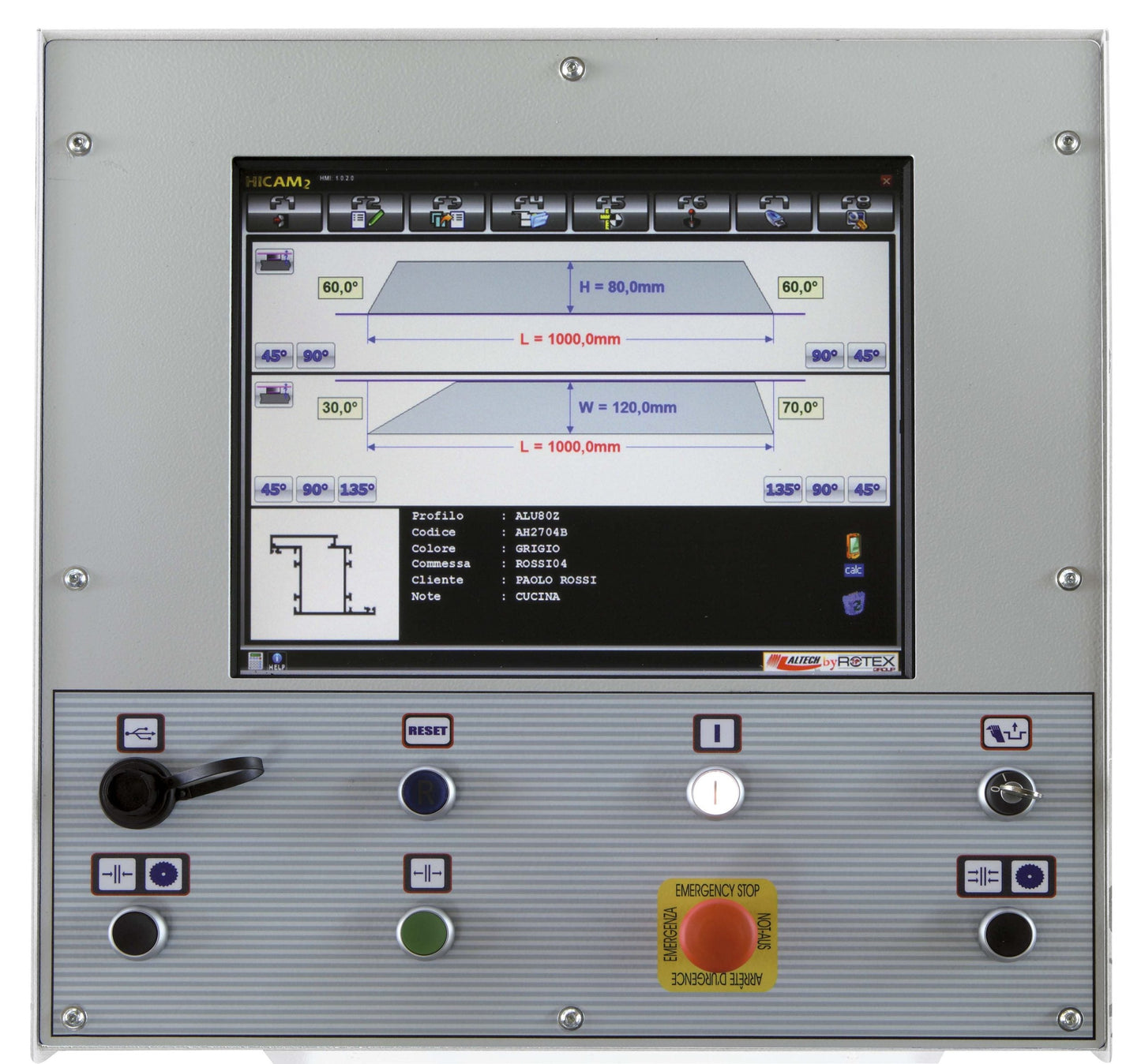

  • Close-up of the 17-inch touchscreen control panel on the Selecta Series, showcasing its user-friendly interface for machining programs.

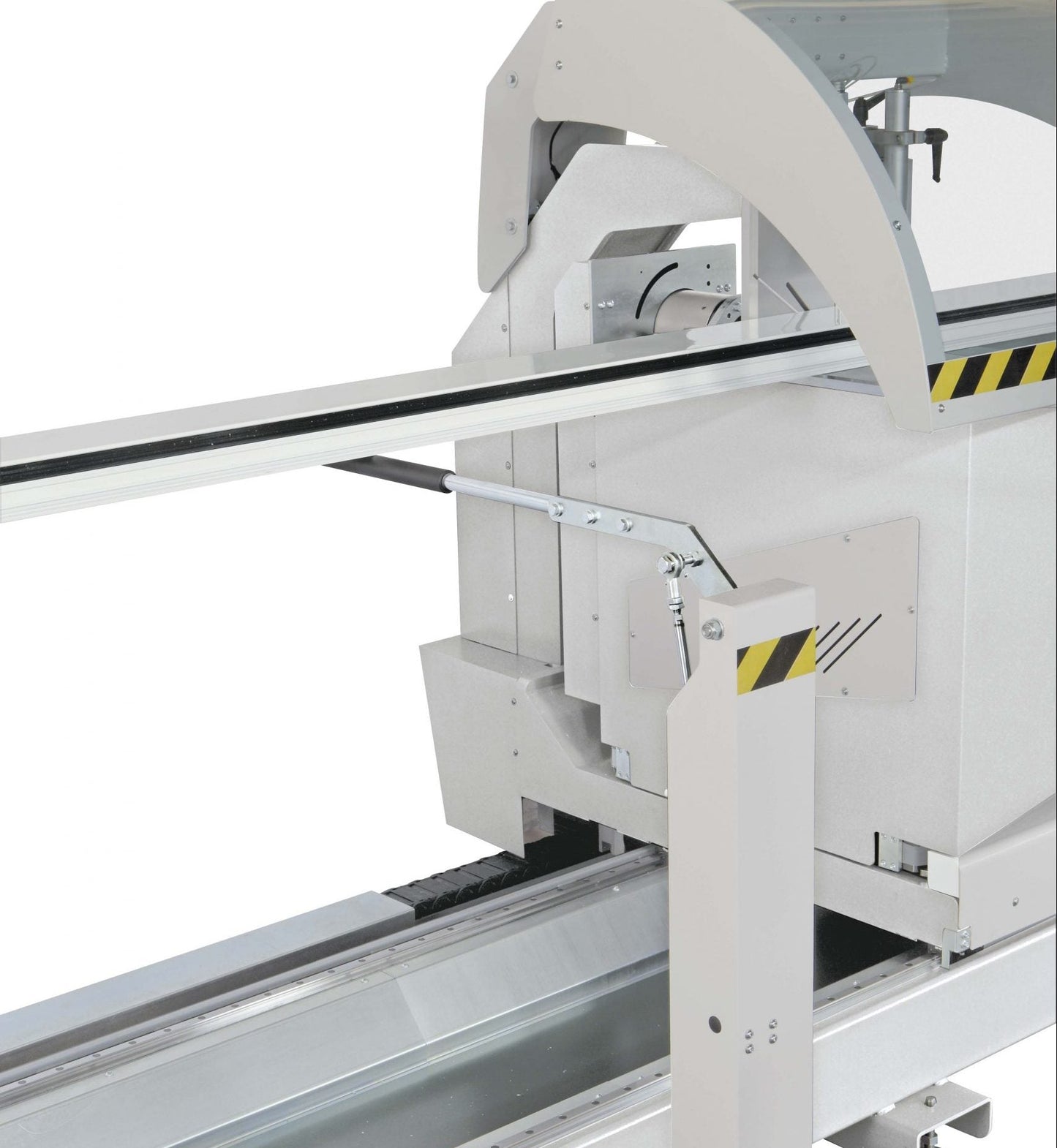

  • Detailed component of the Selecta A double-head cutting machine, highlighting precision-engineered elements for industry-grade performance.
1 10

Gemma

SELECTA

SELECTA

$129,367.00 CAD
$129,367.00 CAD
Sale Sold out
model

Two-head miter saw with tilting and rotating ascending blades for compound cuts. Strongly ribbed electro-welded steel base. Left cutting unit fixed, right unit with automatic movement controlled by software. Feed roller combined with the mobile head.

Selecta P is equipped as standard with 4 vertical pneumatic clamps. The cutting units are controlled by a 3 kW motor at 1.800 rpm and are equipped as standard with 600 mm diameter widia blades. Micro-drop cut lubrication. X-axis travel of 5.000 mm (optional 6.000 mm). X axis movement on linear guides with rectified rack. Rotation angles from 40° to 157,5° with manual adjustment. Tilt angles from 90° to 135° with pneumatic adjustment.

Possibility of working on pieces even longer than the X-stroke. Operator interface on PC-Windows equipped with 17” color touch-screen. The machine is equipped as standard with safety and protection devices in compliance with CE regulations.

Download Product details PDF for Selecta P

Download Product details PDF for Selecta A

View full details

Key Features

Details

  1. Dual-Head Precision: Both models feature a fixed left head and a movable right head, ensuring accurate and seamless cutting for complex applications.
  2. Tilting and Rotating Blades: Achieve compound cuts with pneumatic or electronic control for precise tilting and pivoting angles ranging from 90° to 135°.
  3. Superior Blades: Equipped with Ø600 mm widia blades, optimized for high-speed and accurate cutting of aluminum and PVC profiles.
  4. Control Panel: Intuitive PC-Windows 17” touchscreen with HICAM 2 software, enabling easy program uploads, machining visualization, and real-time data transfer.
  5. Industry 4.0 Ready: Ethernet, Wi-Fi, and teleassistance capabilities ensure seamless integration into modern production environments.

Technical Highlights

  • Cutting Capacity: Handles dimensions up to 200x200 mm (90°) and 170x170 mm (45°).
  • Blade Speed: 2,800 RPM for efficient cutting performance.
  • Safety: Fully enclosed cutting area with automatic opening and CE-compliant protections.
  • Mobility: The moving head glides smoothly on precision linear guides.

Selecta A vs. Selecta P: Key Differences

While both models share a robust framework and advanced functionalities, here’s what sets them apart:

  • Control System: The Selecta A boasts CN-controlled pivoting and tilting, whereas the Selecta P uses pneumatic controls.
  • Target Applications: Choose Selecta A for environments prioritizing automation and Selecta P for versatile manual operations with pneumatic precision.

Why Choose the Selecta Series?

  • Precision Engineering: Ideal for cutting aluminum, PVC, and vinyl profiles with unmatched accuracy.
  • Versatility: Supports compound and straight cuts for diverse applications.
  • Durability: Built on a robust electro-welded steel frame to withstand industrial demands.

Optional Features

Enhance your cutting operations with add-ons like horizontal clamps, motorized belt scrap conveyors, label printers, and UL-CSA-compliant setups for North American markets.

FAQs

  1. Can I use a miter saw to cut aluminum? Yes, the Selecta Series is optimized for aluminum profiles, ensuring clean and precise cuts with its high-speed blades.
  2. What blade should I use for cutting aluminum? The Ø600 mm widia blades included with the Selecta Series are specifically designed for cutting aluminum and PVC profiles efficiently.
  3. What are the advantages of a dual bevel miter saw? Dual bevel miter saws like the Selecta Series allow for versatile cutting at multiple angles without repositioning the material, saving time and enhancing precision.
