Selecta AL Double-Head Cutting-Off Machine: The Industry's Largest and Most Advanced Solution
The Selecta AL is a cutting-edge double-head cutting-off machine designed for precision, efficiency, and versatility. Engineered for compound cuts, it is the ideal solution for professionals working with aluminum, PVC, and other materials requiring high accuracy and speed. Whether you're crafting windows, doors, or other components, the Selecta AL combines advanced technology with user-friendly operation.
Unmatched Cutting Capacity and Precision
The Selecta AL boasts the largest blade diameter in the industry at 1050 mm, delivering exceptional cutting performance for even the most demanding tasks. With a cutting capacity of up to 6,000 mm, it can handle large and complex projects effortlessly. Precision ball screws and brushless motors ensure positioning accuracy and consistent results every time.
Details

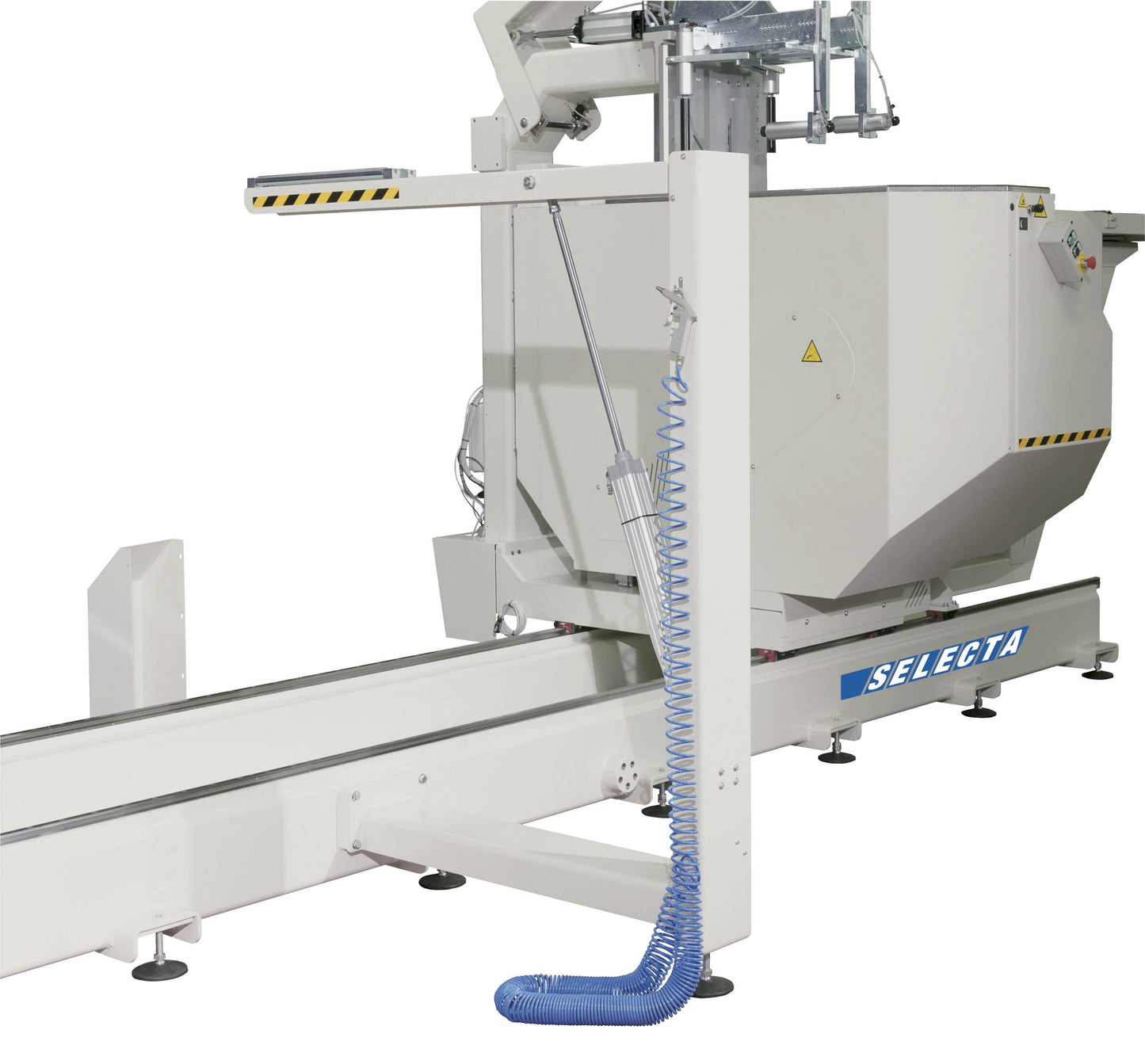

Two-head miter saw with tilting and rotating ascending blades for compound cuts. Strongly ribbed electro-welded steel base. Left cutting unit fixed, right unit with automatic movement controlled by software. Feed roller combined with the mobile head. Selecta AL is equipped as standard with 4 vertical pneumatic clamps and 2 horizontal pneumatic clamps.
The cutting units are controlled by a 15 kW motor at 1.800 rpm and are equipped as standard with 1.050 mm diameter widia blades. Micro-drop cut lubrication. X-axis travel of 6.000 mm. X axis movement on linear guides with rectified rack. Rotation angles from 40° to 157,5°. Inclination angles from 90° to 135° with electronic adjustment.
Possibility of working on pieces even longer than the X-stroke. Operator interface on PC-Windows equipped with 17” color touch-screen. The machine is equipped as standard with safety and protection devices in compliance with CE regulations.
Technical Specifications
Feature |
Specification |
---|---|
Blade Diameter |
1050 mm |
Max Cutting Length |
6,000 mm |
Motor Power |
15 kW (x2) |
Power Supply |
400 V / 50 Hz |
Cutting Speed |
25 m/min |
Cutting Capacities
At 90°: Cuts up to 340 x 340 mm or 700 x 245 mm.
At 45°: Cuts up to 260 x 260 mm or 700 x 175 mm.
Minimum cutting length between blades: 750 mm.
Maximum cutting length between blades: 6,000 mm.
Share









Collapsible content
Key Features
Tilting and Rotating Blades: Achieve compound cuts with the machine’s ascending blades, designed for seamless tilting and rotating movements.
Fixed Left and Movable Right Units: The fixed left cutting head ensures stability, while the right unit offers automatic, precise movement for versatile applications.
Advanced Cutting Technology:
- Blade Diameter: 1,050 mm with electronic blade output management.
- Cutting Angles: 90° to 135° tilting and 40° to 157.5° pivoting angles.
- Cutting Speed: Up to 6 m/min for maximum productivity.
Precision Control:
- Brushless motor-driven axes for superior positioning accuracy.
- Movement guided by linear rails and ball screws.
Smart Control Panel: 17-inch color touchscreen with HICAM 2 software, enabling real-time program uploads, visualization of machining data, and Industry 4.0 compliance.
Built for Safety and Efficiency
- Integral Cutting Protections: Automatic opening and closing mechanisms ensure operator safety.
- Optical Barrier: Compliant with CE safety regulations for worry-free operation.
- Micro-Drop Lubrication: Uses pure oil for efficient and clean cutting performance.
Applications
The Selecta AL is suitable for precision cutting in aluminum and PVC, making it ideal for manufacturers of windows, doors, and similar components. Its robust build and reliable performance make it a preferred choice for industrial settings requiring high output and consistency.
Optional Add-Ons
Motorized belt scraps conveyor for efficient waste management.
- Additional widia blade (1,050 mm).
- Label printer for easy product identification.
- UL-CSA setup for USA and Canada standards.
- Autotransformer for specialized voltage needs.
Why Choose the Selecta AL?
The Selecta AL is more than a double mitre saw; it’s a precision-engineered solution that enhances productivity while maintaining safety and reliability. Its robust construction and high-performance features ensure stable and efficient operations, even in demanding industrial environments.
- Largest Blade Diameter: Dominate large-scale projects with unmatched cutting capacity.
- Precision Engineering: Ensure every cut meets the highest standards.
- Advanced Software Integration: Simplify operations and reduce downtime.
- Safety and Compliance: Protect operators while adhering to global standards.
Innovative Features for Maximum Efficiency
Equipped with advanced features, the Selecta AL streamlines the cutting process, enhancing productivity and safety:
- Electronic control for pivoting and tilting, managed via a 17” color touchscreen interface with HICAM 2 software.
- Vertical and horizontal pneumatic clamps ensure material stability, while the micro-drop lubrication system minimizes wear on the blades.
- Integral cutting area protections with automatic opening and closing safety hoods, meeting CE safety standards.
- Industry 4.0 compliance with Ethernet, WiFi, and teleassistance connectivity.
Engineered for Durability and Reliability
The Selecta AL features a robust electro-welded steel structure, ensuring stability and long-term durability. The machine's movable right head is mounted on precision linear guides, allowing seamless adjustments for various cutting needs. The IP55-rated electrical cabinet provides optimal protection, even in challenging environments.
